• Introducing different layers of complexity
  • Tracking the changes in a “linear” fashion (see day 1)
  • Workflow with branches and Merge Requests
• Mastering Branching and Merging
  • Key Concepts
    • Branches
    • Merging & merge conflicts
  • Branching and merging in practice
• Good practices
  • Branches naming conventions
  • pre-commit hooks

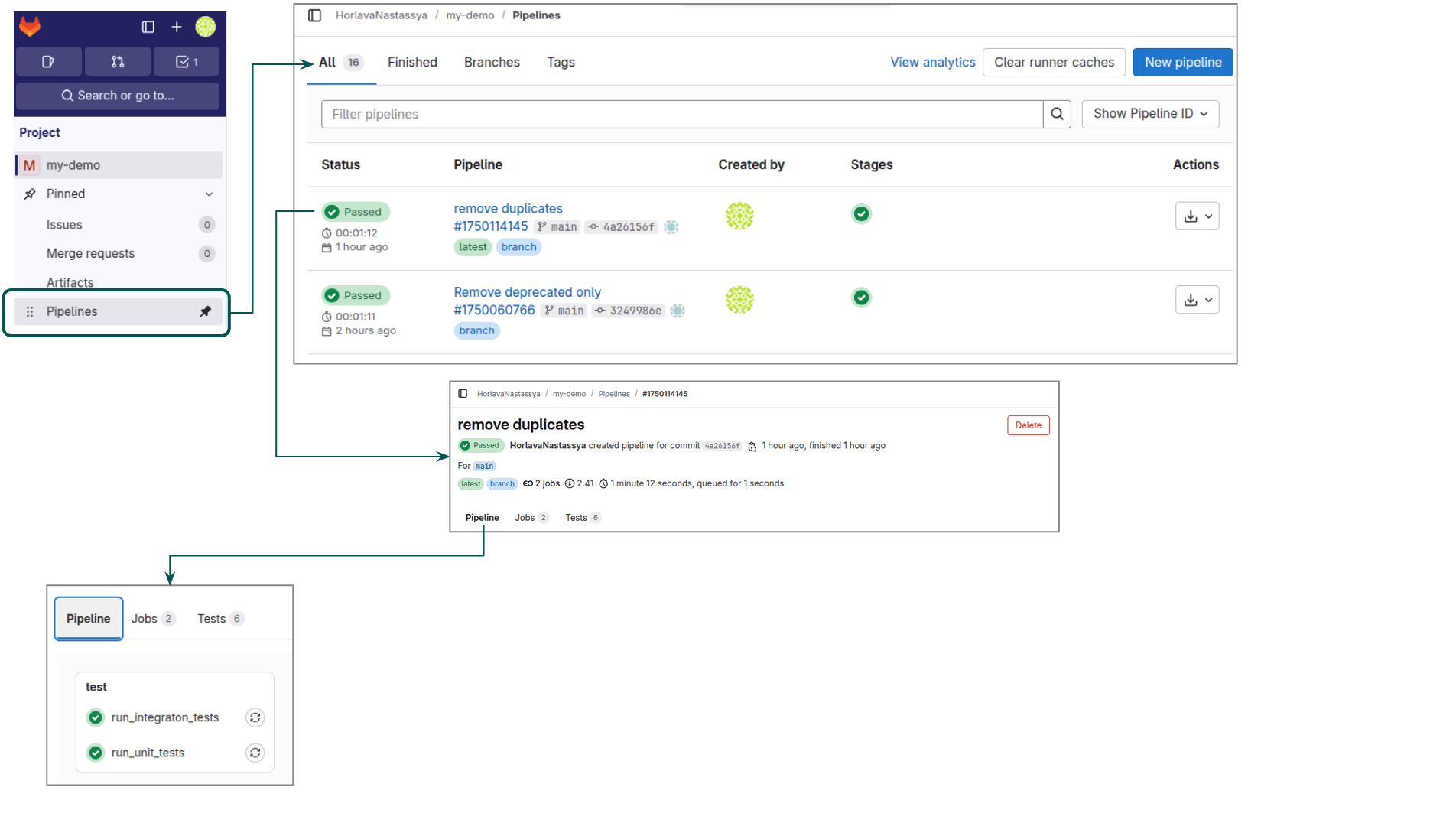

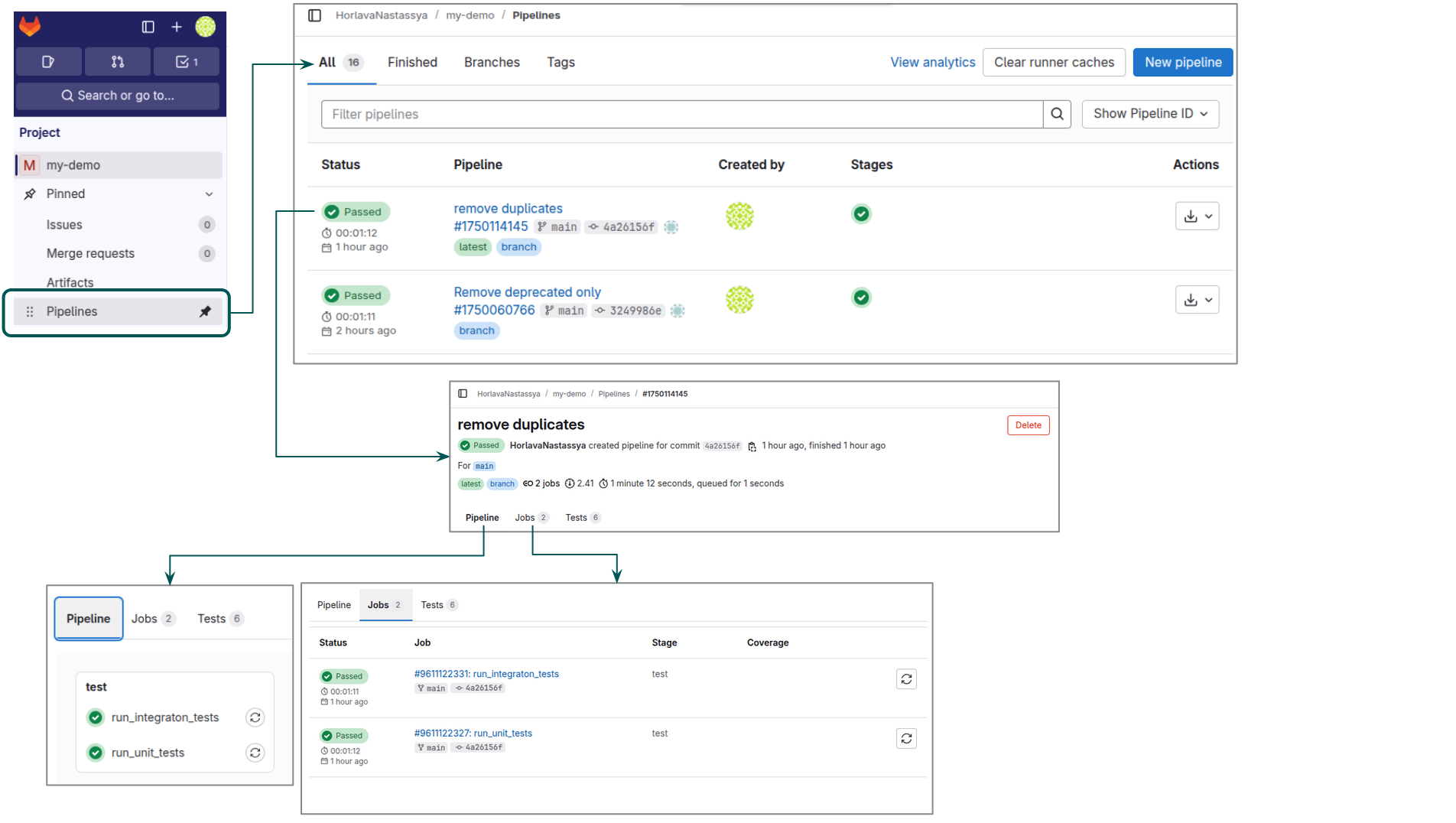

  • CI/CD pipelines in Gitlab

• Mastering Branching and Merging
  • Key Concepts
    • Branches
    • Merging & merge conflicts
  • Branching and merging in practice
• Good practices
  • Branches naming conventions
  • pre-commit hooks
  • CI/CD pipelines in Gitlab

Different layers of complexity

• Tracking the changes in a “linear” fashion


• Workflow with branches and Merge Requests

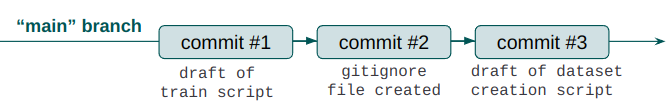

Tracking the changes in a “linear” fashion**

• Ideal for projects where the codebase is simple and one person is working on the project, or there is a minimal need for collaboration.
• All work is done on a single branch, usually the main branch.
• Every commit is added directly to the tip of the main branch, creating a linear history.
• Since there is only one branch, there is no need to deal with branches or merging.
• Typical workflow: change/add/delete files → git add → git commit → git push

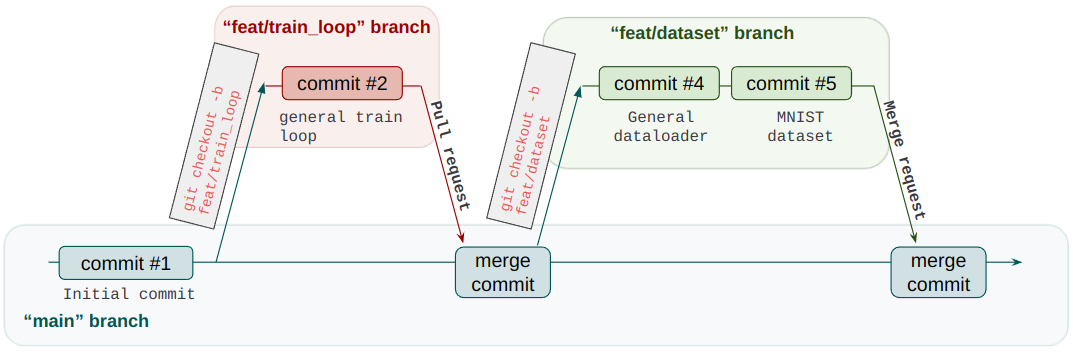

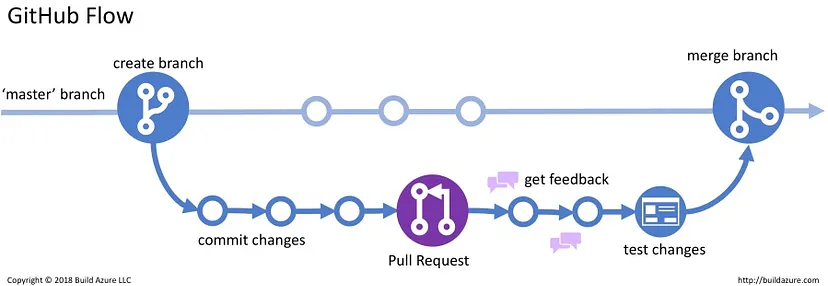

Workflow with branches and Pull Requests

• This workflow involves creating separate branches for different features, bug fixes, or experiments.
• Changes are reviewed and integrated into the main branch through merge requests (also know as Pull Requests).


• Use-cases:
  • Collaborative projects: Ideal for teams where multiple developers work on different features simultaneously.
  • Complex projects: Suitable for projects where features are developed independently and integrated later.


• Workflow Example

  • Create a branch: Create a new branch for a feature or bugfix using git checkout -b feature/new-feature.
  • Introduce changes and commit them: change/add/delete files → git add → git commit -m "commit message"
  • Push the branch: Push the branch to the remote repository using git push origin feature/new-feature
  • Create a Merge Request: Open a merge request to merge the branch into the main branch.
  • Code review: Review the changes in the merge request, and discuss or request changes if necessary.
  • Merge: Once approved, merge the merge request into the main branch.
  • Delete the branch: Optionally, delete the feature branch after merging.

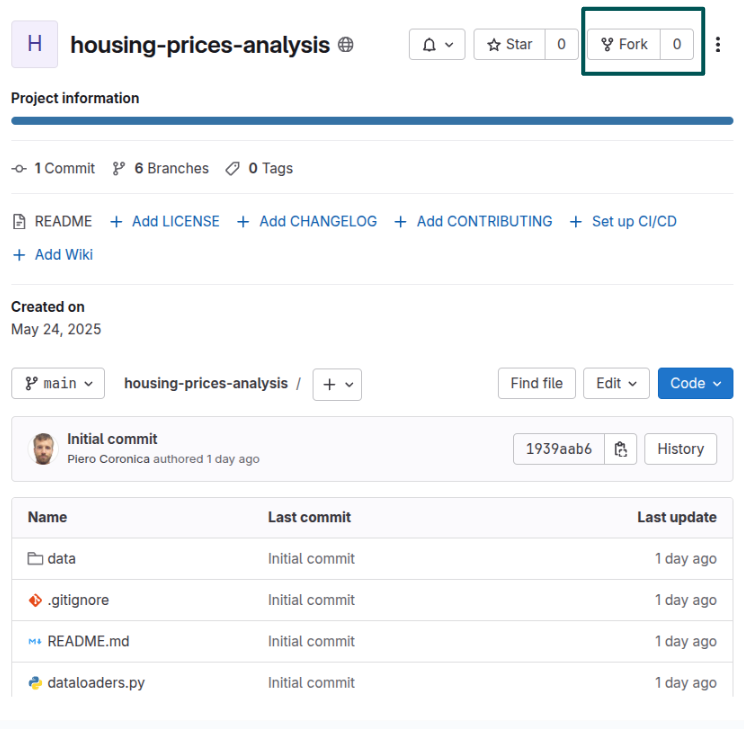

Forking repositories:

• A fork is a copy of a repository that lives on your GitLab/Github account.
• It allows you to freely experiment and make changes without affecting the original repository.
• Forks are essential when you want to contribute to a project but do not have write access to the original repo.
• When you "fork" a project, Gitlab/Github will make a copy of the project that is entirely yours; it lives in your namespace, and you can push to it.

How to use forking to contibute to an open-source project:

1. Fork the original repository on GitHub/GitLab.
2. Clone your fork to your local machine:
3. Create a topic branch from main branch.
4. Make some commits to improve the project.
5. Open a Merge Request.
6. Discuss, and optionally continue committing.
7. The project owner merges or closes the Merge Request.
8. Sync the updated main branch back to your fork.

• Introducing different layers of complexity
  • Tracking the changes in a “linear” fashion (see day 1)
  • Workflow with branches and Merge Requests

• Good practices
  • Branches naming conventions
  • pre-commit hooks
  • CI/CD pipelines in Gitlab

Mastering Branching and Merging

Branching

• Branching means that you diverge from the main line of development and continue to do work without messing with that main line (or any other line of development that exists):
  • Each branch maintains its own independent history.
  • Changes in one branch don’t impact other branches until you explicitly merge them.
  • Branch can be created at any time and from any other branch (usually from a “parent” branch like main or dev).

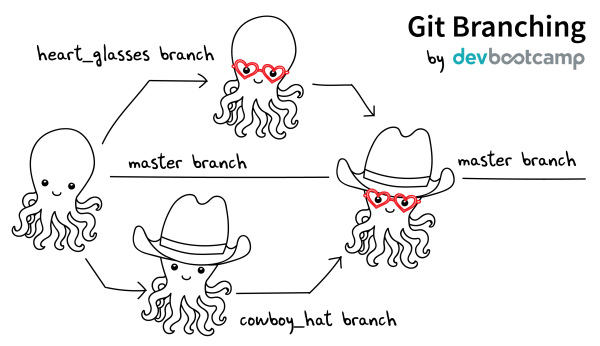

  • An analogy: branches are like alternative timelines.

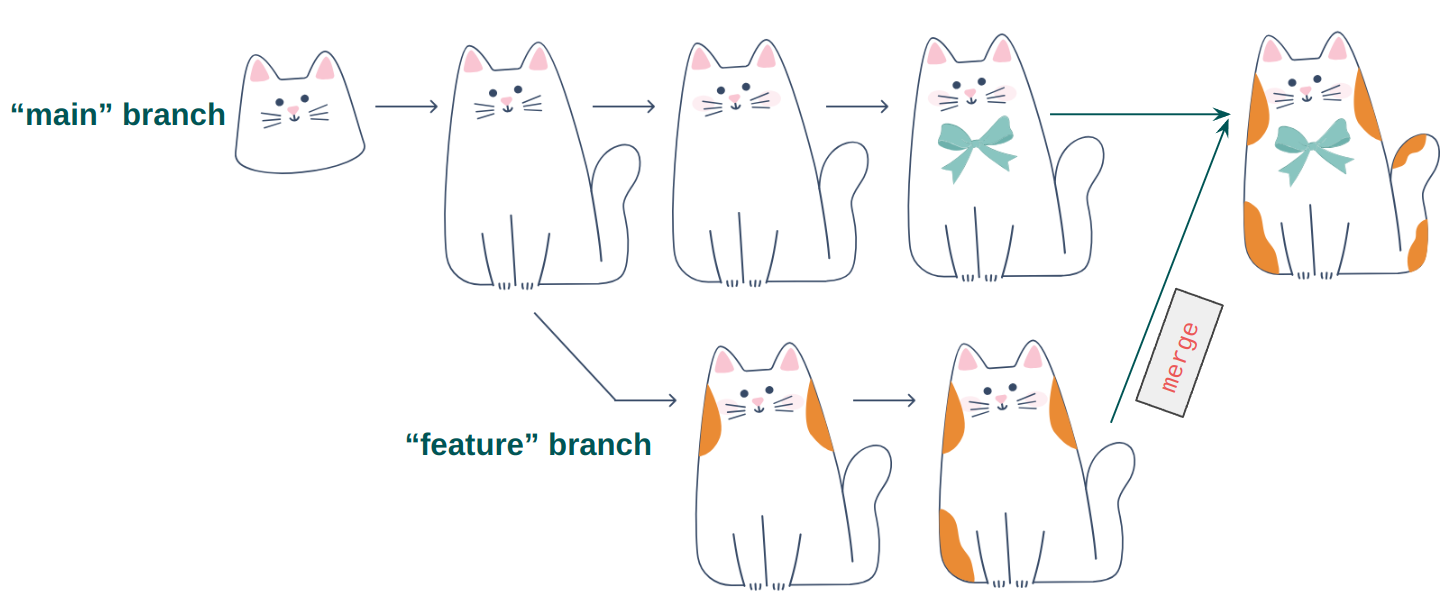

Merging

• Once you’re satisfied with the changes, you merge the branches back together:

  • Merging is the process of combining the changes from one branch into another.
  • Think of it as blending two different versions of your project together so that they become one unified version.

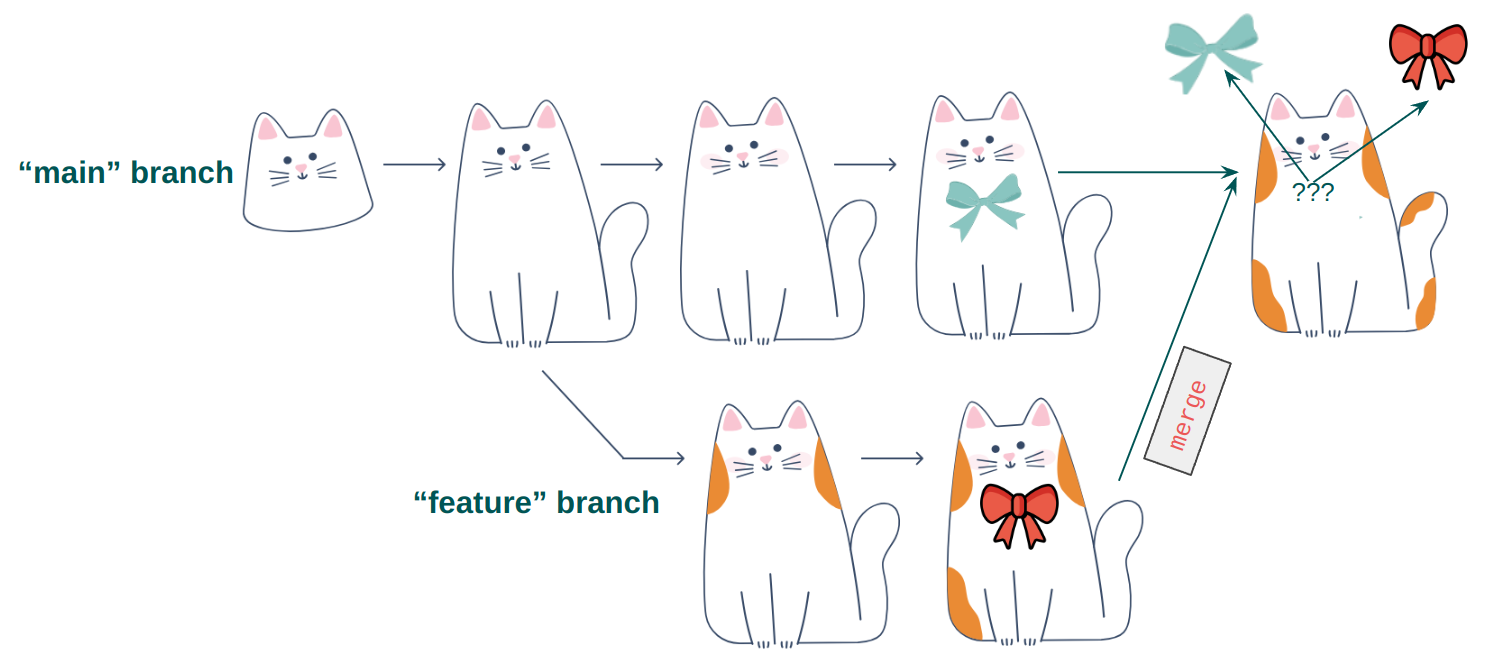

Merge conflicts

What is a merge conflict?

• Merge conflicts occur when competing changes contradict one another


When can a merge conflict occur?

• When more than one person changes the same line in a file and tries to merge the change to the same branch.
• When a developer deletes a file, but another developer edits it, and they both try to merge their changes to the same branch.
• When a developer deletes a line, but another developer edits it, and they both try to merge their changes to the same branch.
• etc...

How to avoid merge conflicts:

• Isolate changes:
  • Change code in small, isolated steps
  • merge the changes into the main branch frequently.
• Minimize overlap:
  • Avoid simultaneous edits on the same file or lines.
  • If you need to make large changes or refactor shared code, communicate with the team, and try to schedule it for a time when fewer people are working on those files.
• Regularly pull from the main branch/branch you're working on in a collaborative fashion.

Branching and merging in practice

Now, let's see this in practice in our repo:

• First, let’s check the branch we’re currently at by executing git branch:

  $ git branch
  * main


• Create a branch called feature/eval and switch into that branch by running git checkout -b feature/eval:

  $ git checkout -b feature/eval
  Switched to a new branch 'feature/eval'


• Now, if we’ll check on which branch we are, we’ll see that we’ve switched to the feature/eval branch:

  $ git branch
  * feature/eval
    main


• Let’s create a script src/eval.py with the following content:

  from dataset import prepare_dataset
  def eval():
      pass

  def main():
      prepare_dataset()
      eval()

  if __name__== "__main__":
      main()


• Now, let’s submit the changes as usual:

  $ git add src/eval.py
  $ git commit -m "draft of evaluation"
  [feature/eval 7134380] draft of evaluation
   1 file changed, 10 insertions(+)
   create mode 100644 src/eval.py



• Finally, let’s push our changes:

  $ git push --set-upstream origin feature/eval
  Enumerating objects: 10, done.
  Counting objects: 100% (10/10), done.
  Delta compression using up to 16 threads
  Compressing objects: 100% (6/6), done.
  Writing objects: 100% (7/7), 750 bytes | 750.00 KiB/s, done.
  Total 7 (delta 1), reused 0 (delta 0), pack-reused 0
  remote:
  remote: To create a merge request for feature/eval, visit:
  remote:   https://gitlab.com/mockusername/cnn_training/-/
  merge_requests/new?merge_request%5Bsource_branch%5D=feature%2Feval
  remote:
  To gitlab.com:mockusername/cnn_training.git
  * [new branch]      feature/eval -> feature/eval
  Branch 'feature/eval' set up to track remote branch 'feature/eval' from 'origin'.


• Note that we run git push --set-upstream origin feature/eval instead of the usual git push.

  • If we were to run the normal git push, we would have received an error like that:

    $ git push
    fatal: The current branch feature/eval has no upstream branch.
    To push the current branch and set the remote as upstream, use

        git push --set-upstream origin feature /eval


  • that’s because the branch you're trying to push (feature/eval) doesn't yet “exist” in the remote repository

  • so, when you create a new branch locally, Git doesn't automatically know where to push it on the remote repository unless you explicitly specify it.

• After doing git push --set-upstream origin feature/eval once, future git push and git pull commands will work without these additional specifications because Git will now know the upstream branch.

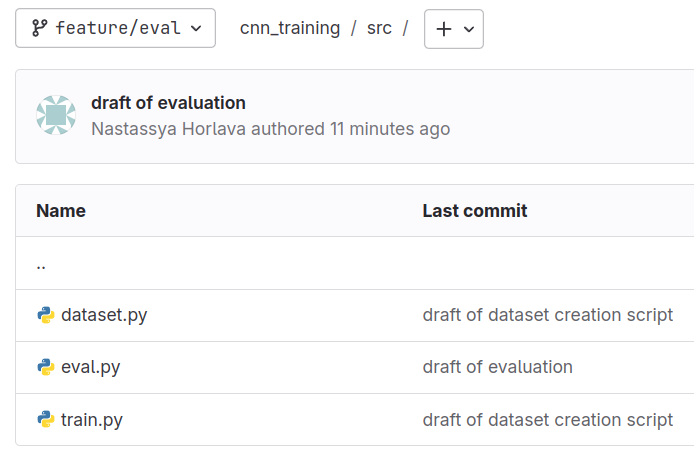

• Now, let’s examine our git repository:

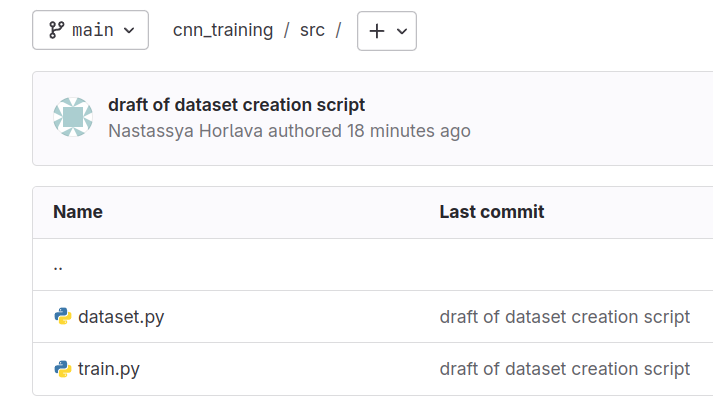

• Branch main	Branch feature/eval

  • You’ll see that although in the main branch, only dataset.py and train.py scripts exist, on the feature/eval branch, we also have the newly created eval.py script.

• Let’s now merge the branch back to the main!

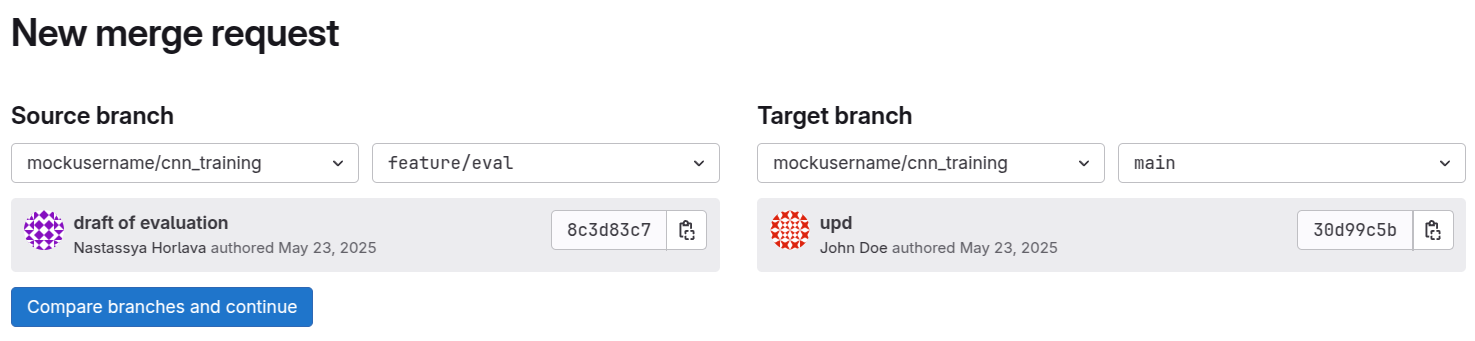

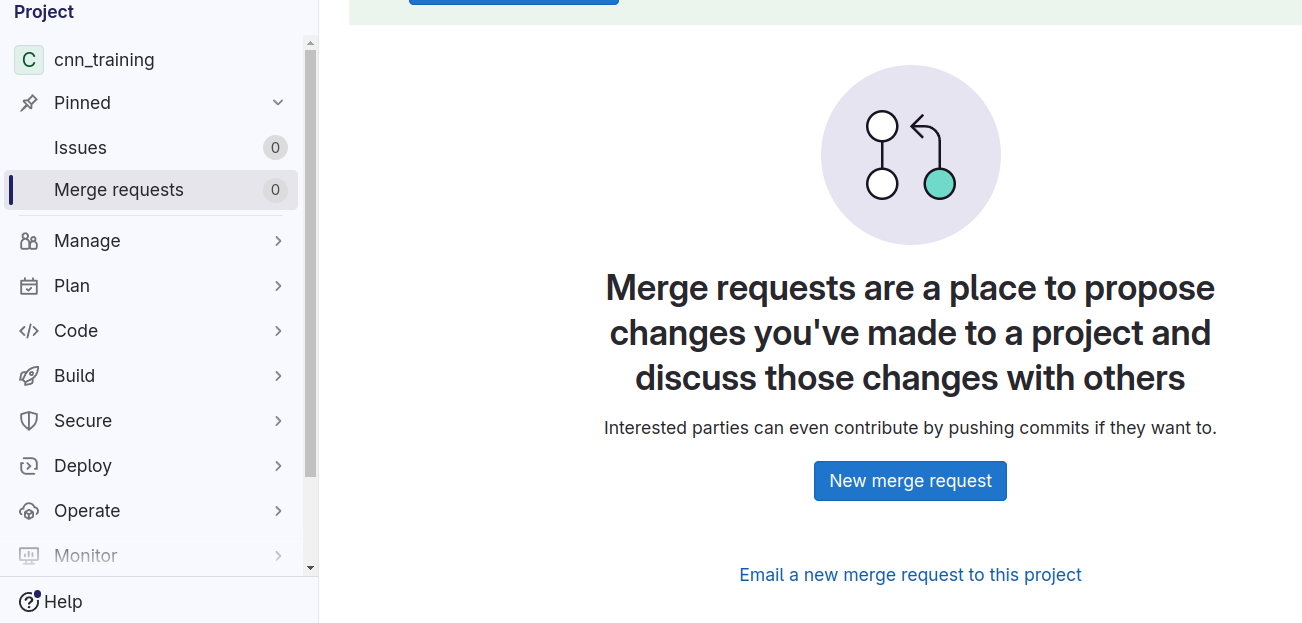

  • First, create a merge request:



• Select the corresponding branches. We want for the changes FROM feature/eval to be transferred to the main branch, so we select the following:



• Now, you’ll be prompted to fill in the following fields (which you could also leave empty):

• Let’s talk about some of the non-self-explanatory fields:
  • An assignee: a person who was working on the feature/issue and who is in charge of merging that pull request after getting comments and change requests from other maintainers.
  • A reviewer: someone you want to review the code.

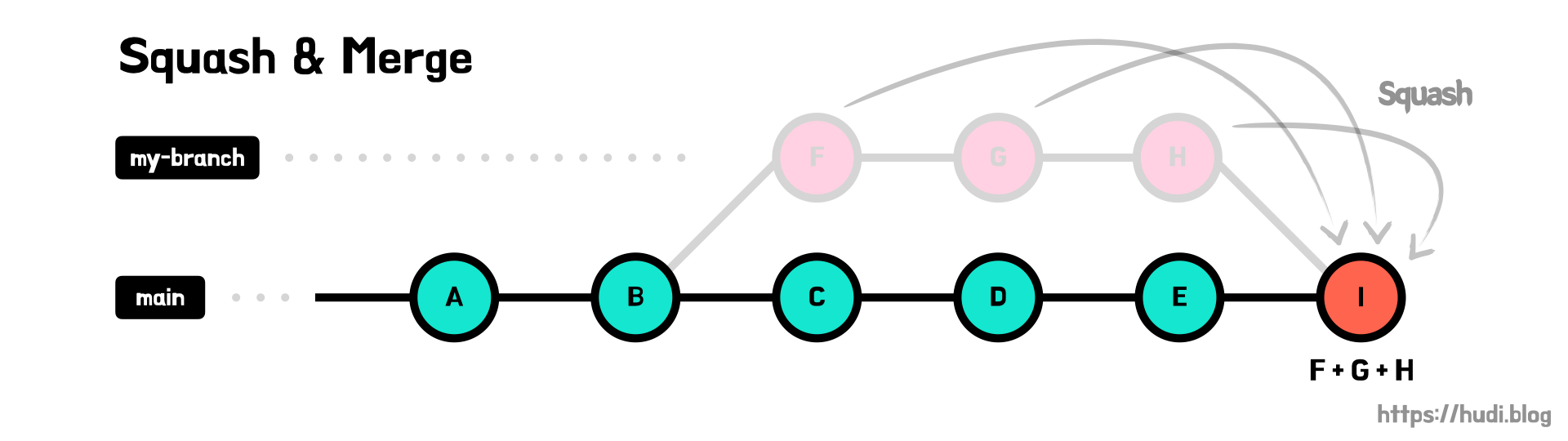

• Squash commits:
  • Squash takes all the commits in the branch (F, G, H) and melds them into 1 commit. That commit is then added to the history, but none of the commits that made up the branch are preserved:

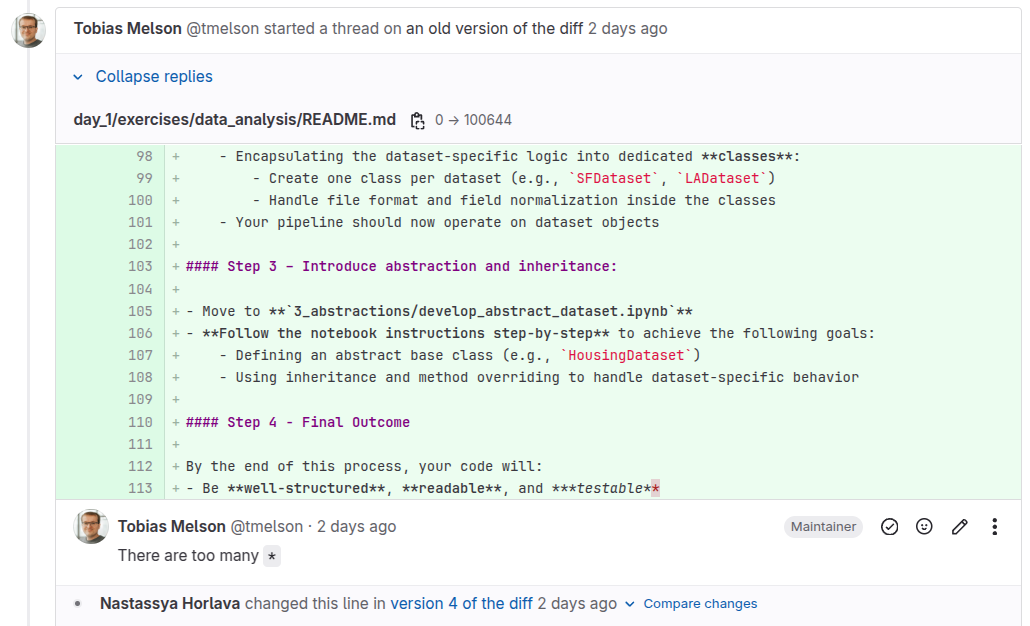

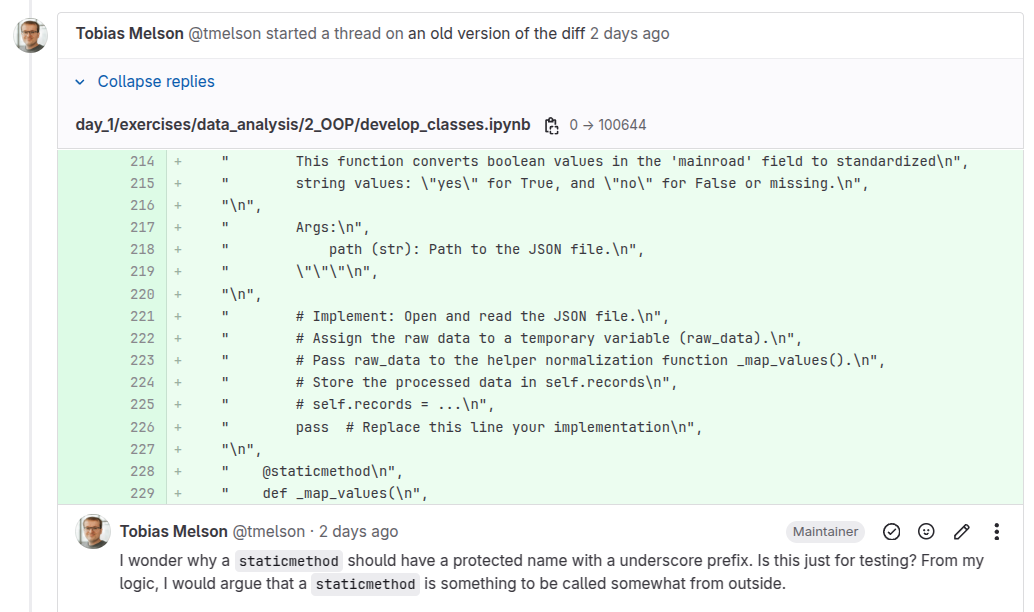

• Reviewing the changes:

  • Once the merge request is created, ask someone to review your changes before merging them into the desired branch.



• Guidline for reviewing the changes:

  • Be kind: review the code, not the person.
  • Don’t just criticize - give guidance: don’t just highlight what is wrong; suggest how it could be improved.
  • Explain your reasoning: make the “why” behind suggestions clear.
  • Label comment severity: distinguish blocking issues from non-blocking suggestions or personal preferences.
  • Accept good explanations: if the author justifies a decision well, don’t force a change.

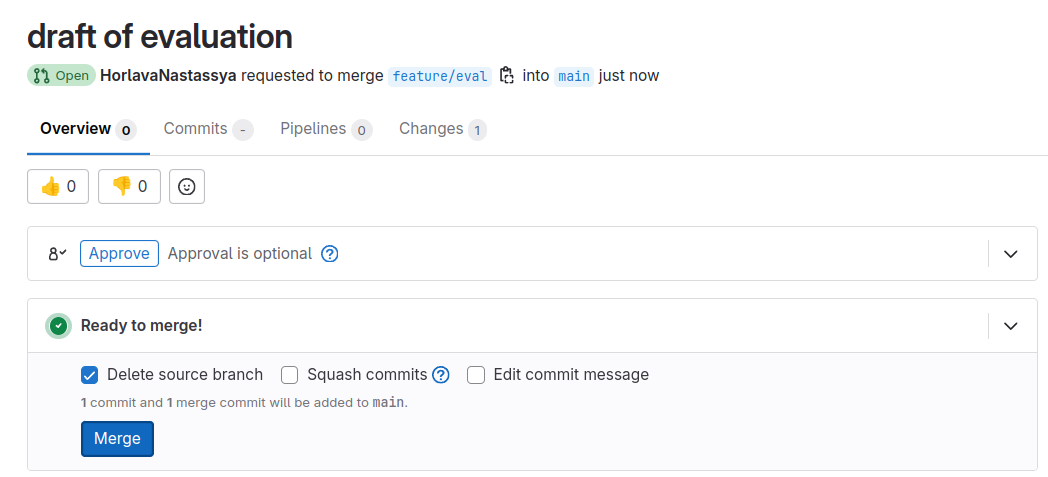

• Now, let’s simply press “Merge”

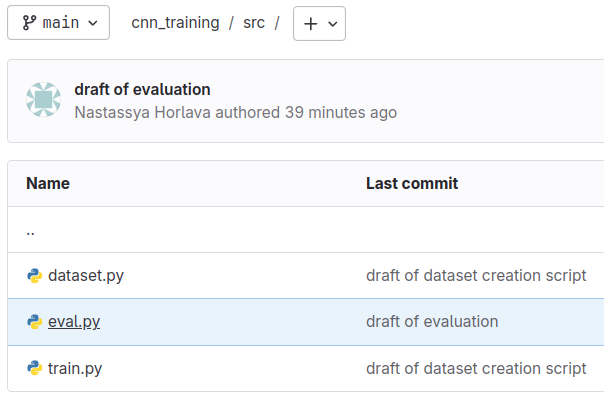

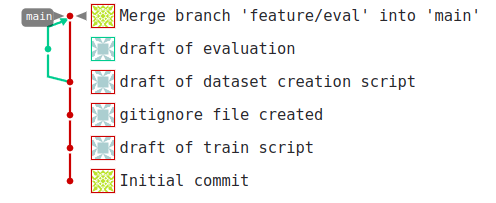

• Awesome, now you’ve applied all the changes to the main branch and it also has your eval script:


• Show the history of changes: git log:

• As the output is quite verbose, you can define an alias for this command with various parameters to "prettify" your output.

  • For that, run the following command:

    git config --global alias.lg "log --all --graph \
    --pretty=format:'%Cred%h%Creset -%C(yellow)%d%Creset \
    %s %Cgreen(%an, %ad)%Creset' --abbrev-commit"


  • Now, executing git lg in our repo will produce the following output:

    *   4bcaf7a - (HEAD -> main, origin/main, origin/HEAD)
     Merge branch 'feature/eval' into 'main' (Test User, Fri May 23 14:25:37 2025 +0000)
    |\
    | * 8c3d83c - (origin/feature/eval, feature/eval) draft of evaluation
     (John Doe, Fri May 23 16:19:36 2025 +0200)
    | * 39ccc3f - gitignore added (John Doe, Fri May 23 16:18:34 2025 +0200)
    |/
    * d1f690b - added the dataset handling (John Doe, Fri May 23 13:02:06 2025 +0200)
    * 4334cba - draft of train script (John Doe, Fri May 23 11:29:47 2025 +0200)
    * 8dafb80 - Initial commit (Test User, Fri May 23 08:02:05 2025 +0000)


• Introducing different layers of complexity
  • Tracking the changes in a “linear” fashion (see day 1)
  • Workflow with branches and Merge Requests
• Mastering Branching and Merging
  • Key Concepts
    • Branches
    • Merging & merge conflicts
  • Branching and merging in practice

Branches naming conventions

• E.g. as listed here:
  1. feature/ or feat/: For developing new features,
  2. bugfix/ of fix/: To fix bugs in the code. Often created associated to an issue.
  3. hotfix/: To fix critical bugs in production.
  4. docs/: Used to write, modify, or correct documentation.

pre-commits:

• What are pre-commit hooks?
  • A Git mechanism that runs specified code before committing the changes.
• Why use them?
  • Enforces consistent coding standards across the team.
  • Prevents common mistakes and errors before they enter the codebase.
• What can they do:
  • Validate the code
  • Check for formatting errors
  • Perform custom checks based on project needs
  • Reject commits if issues are detected

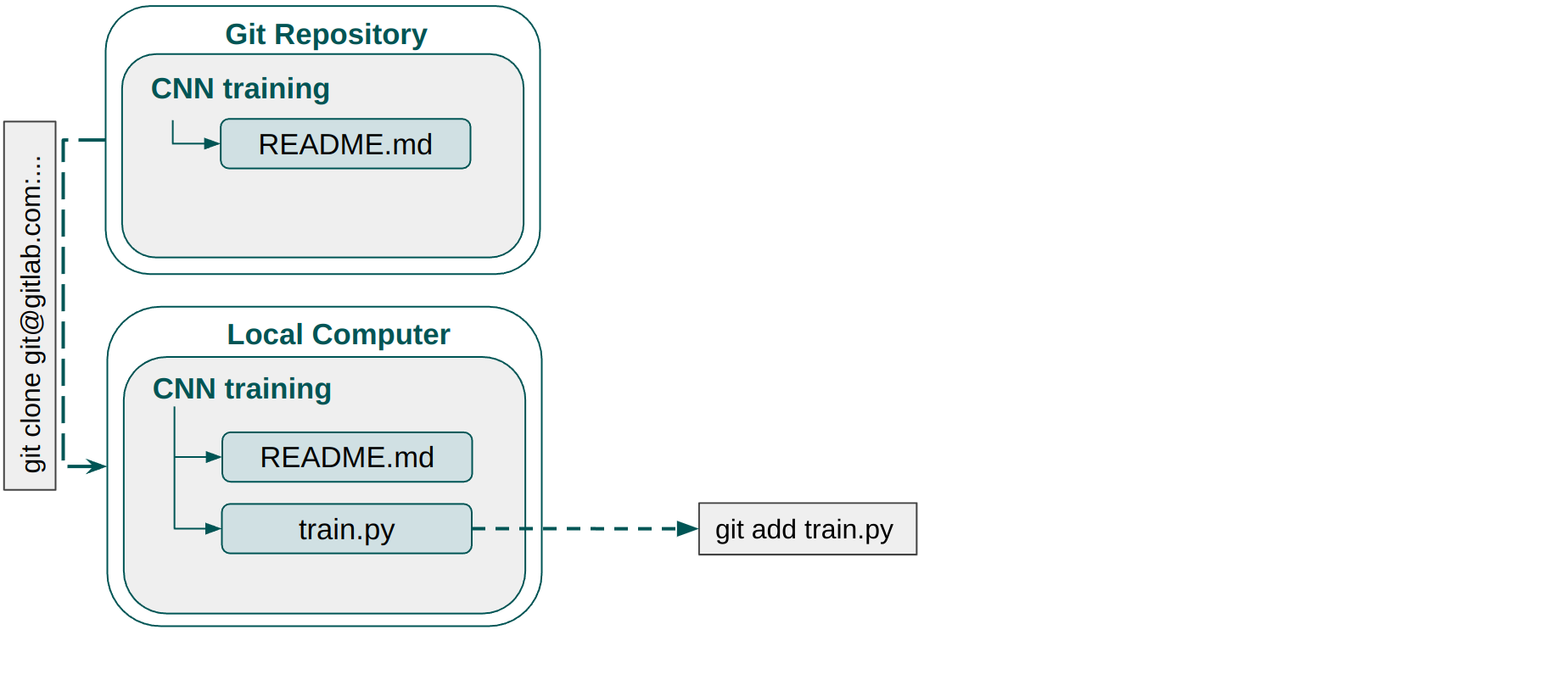

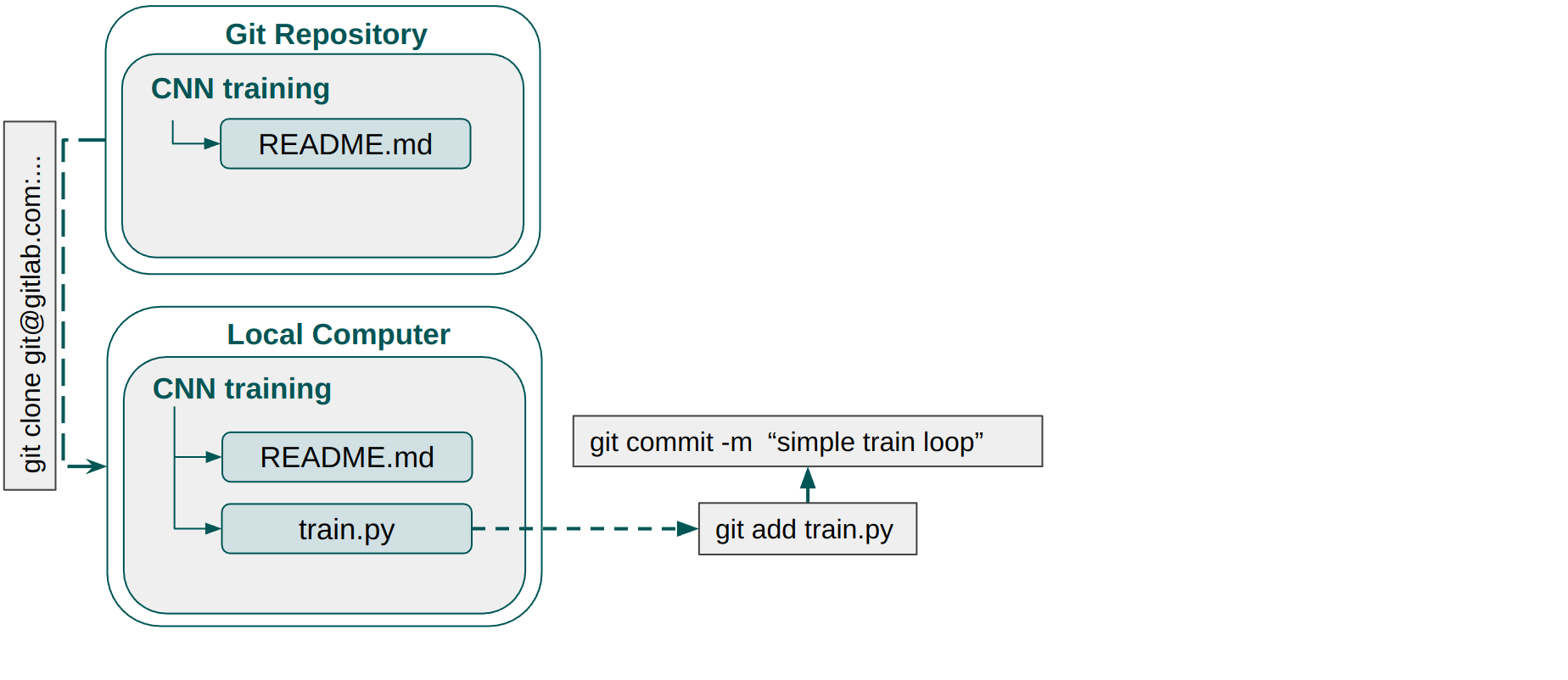

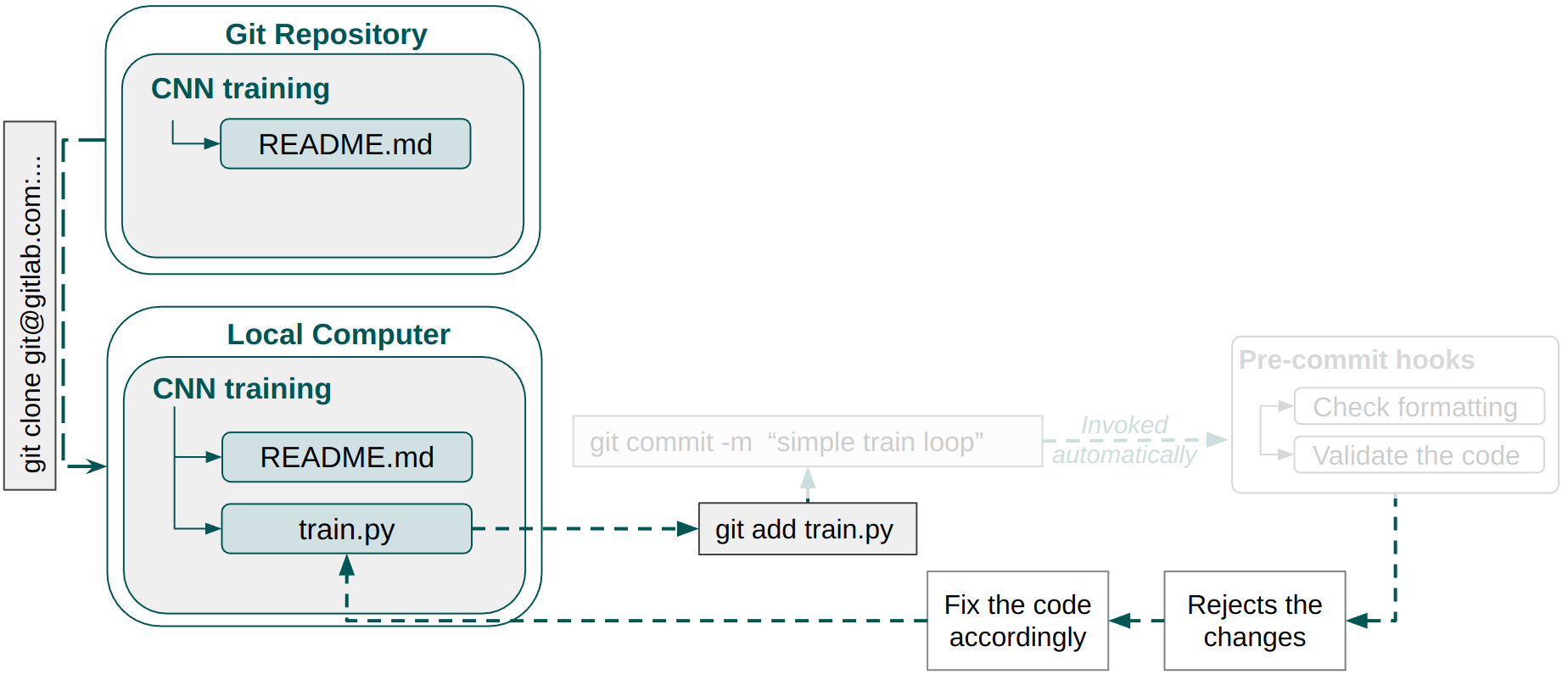

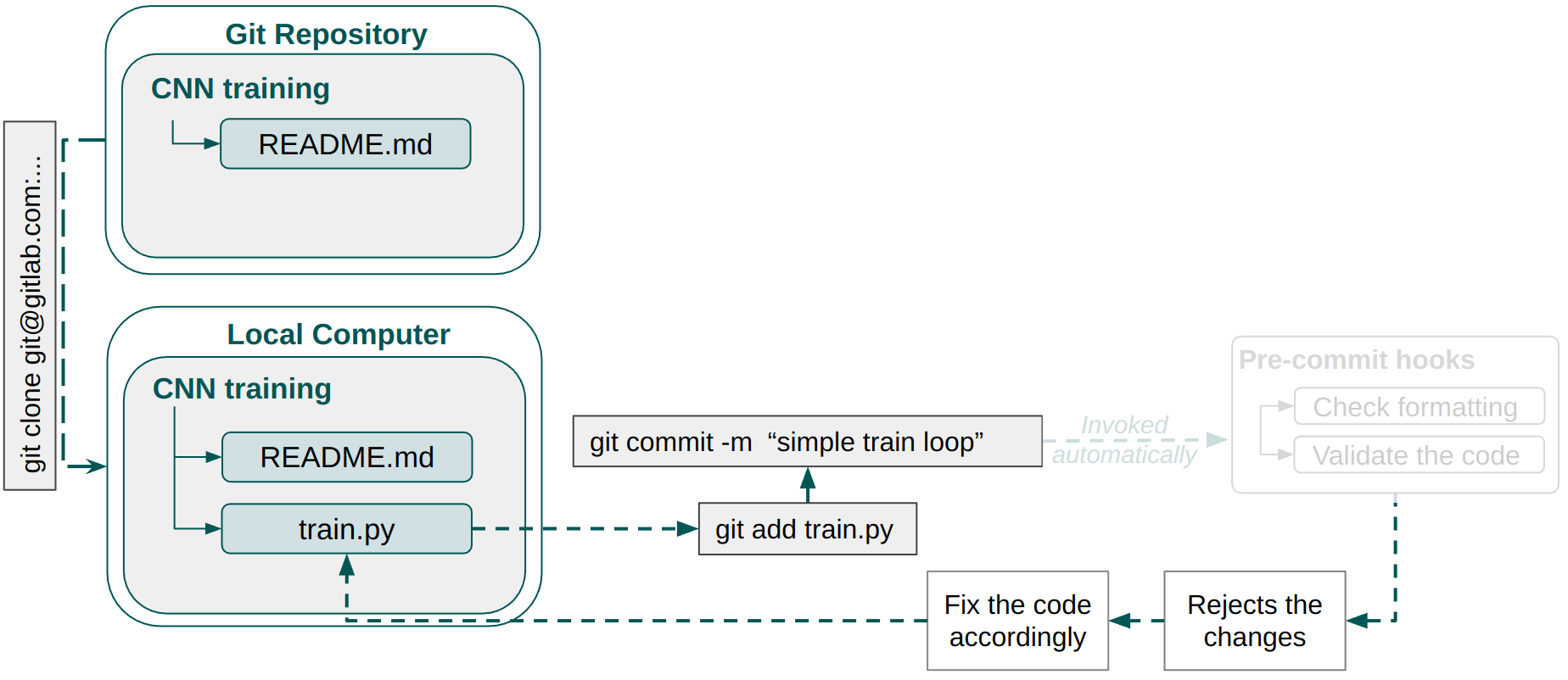

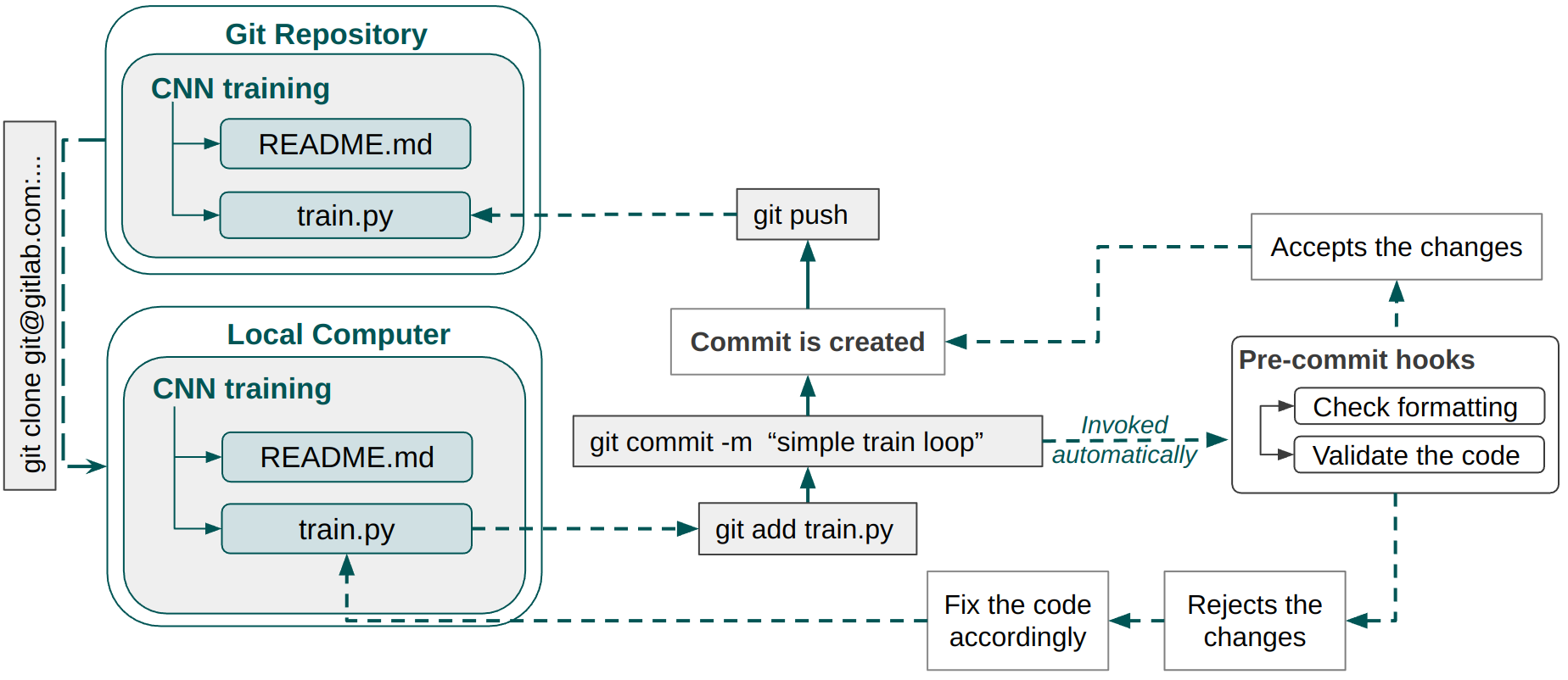

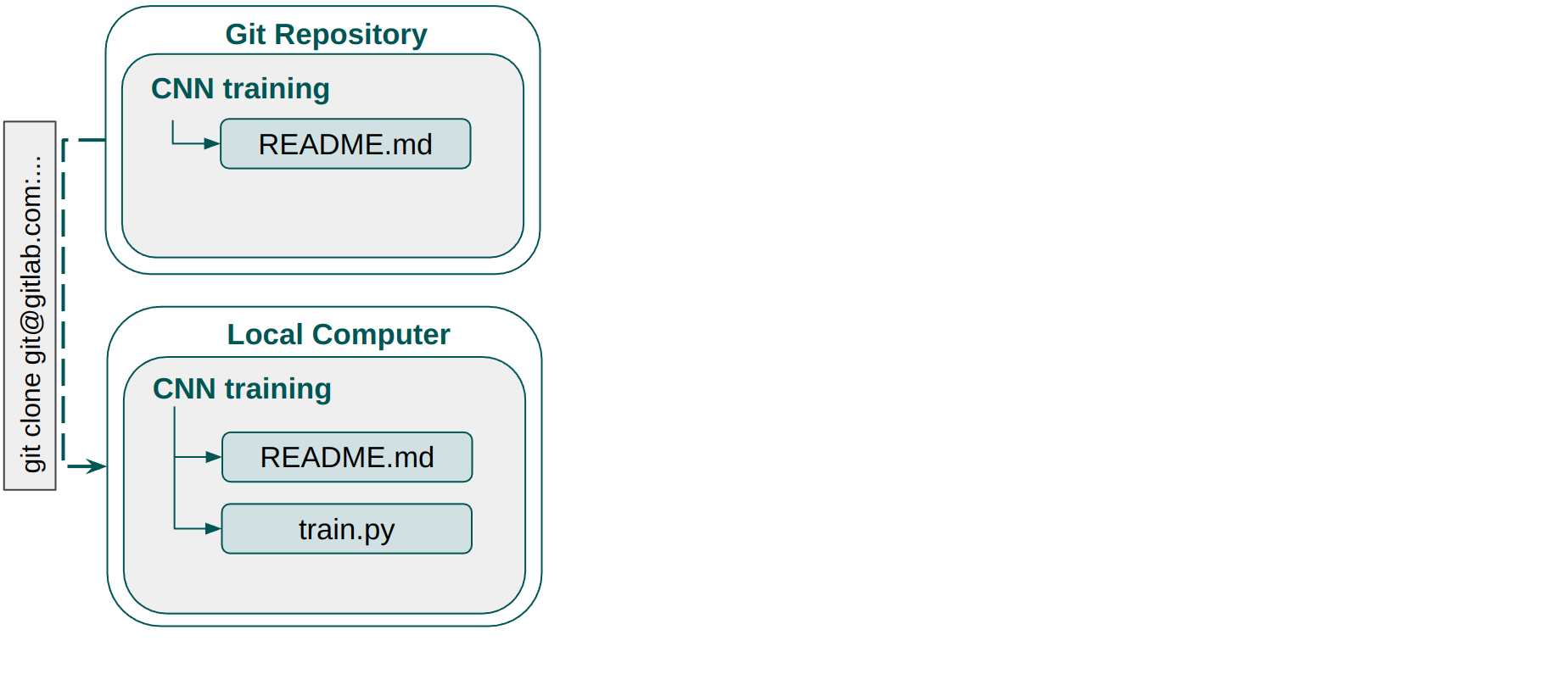

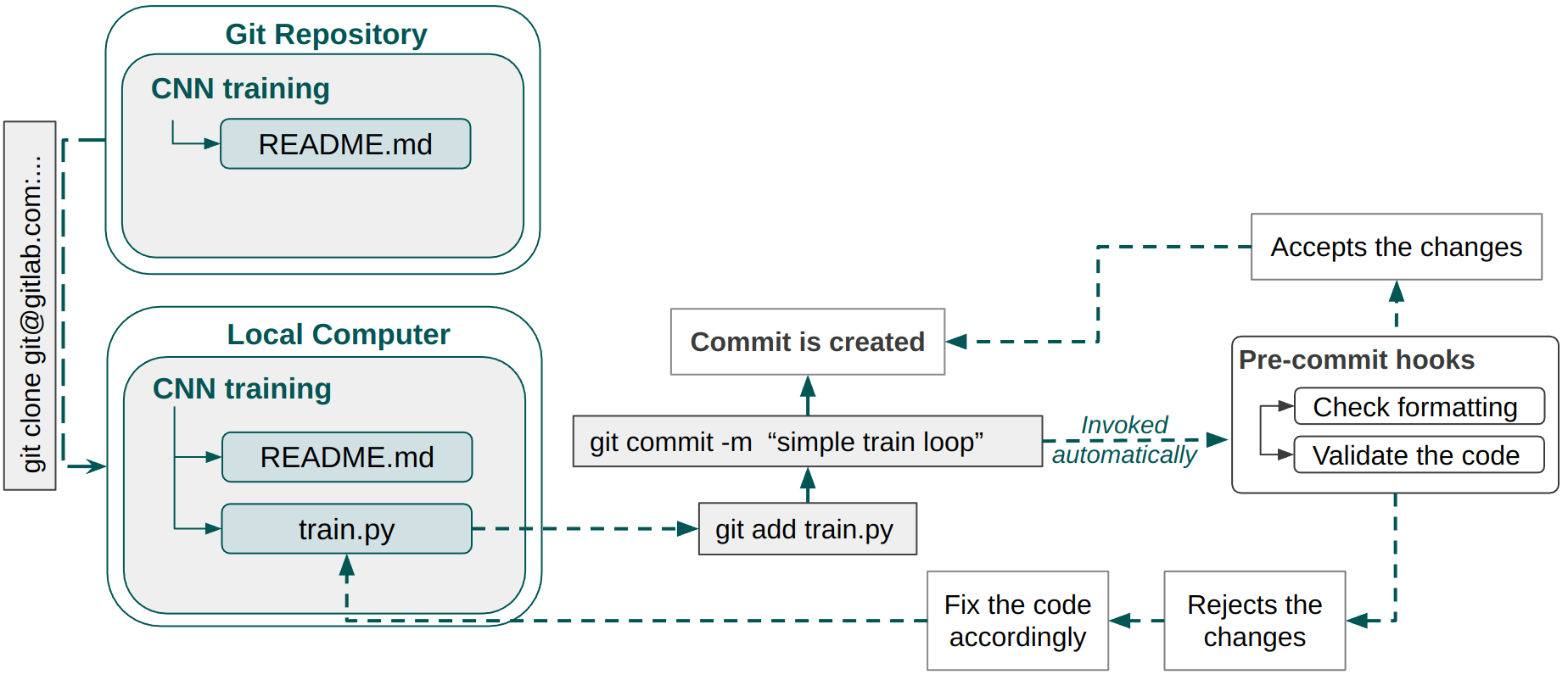

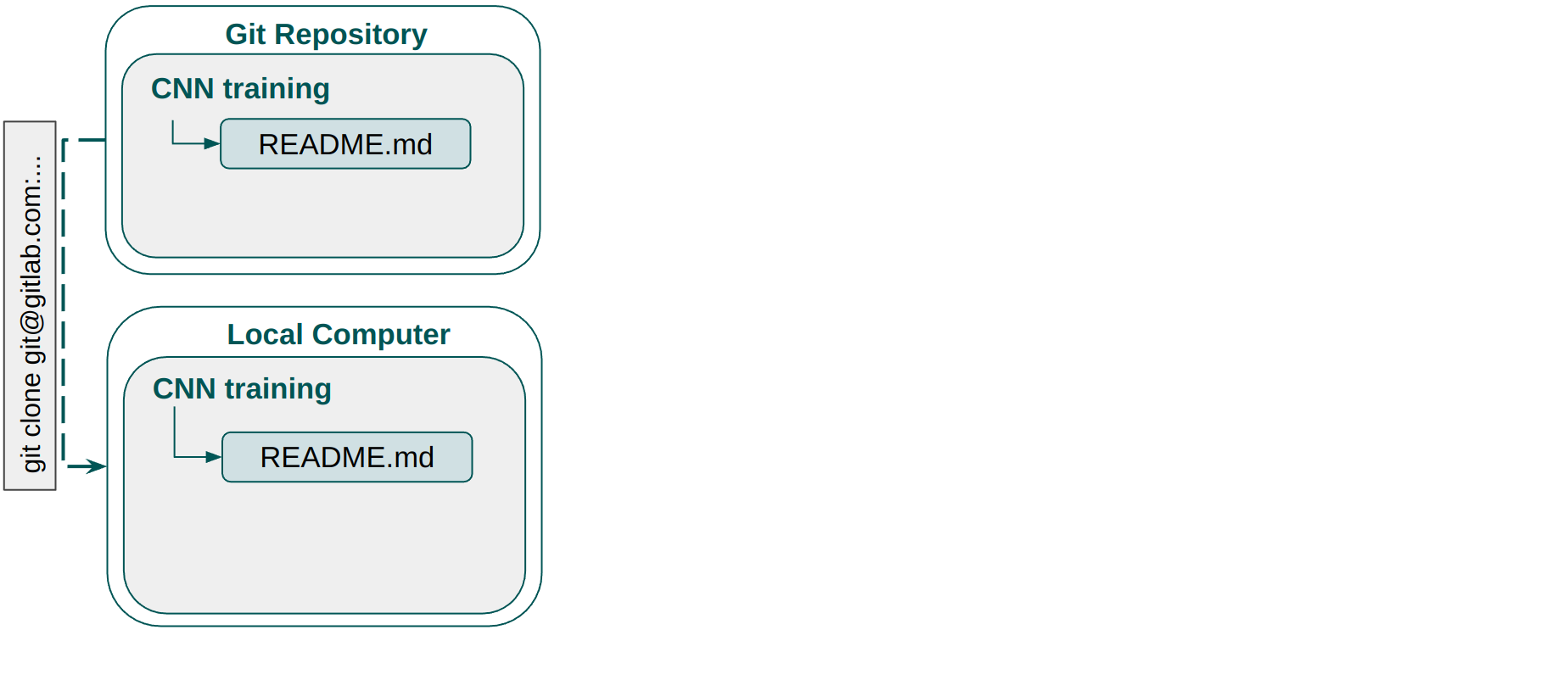

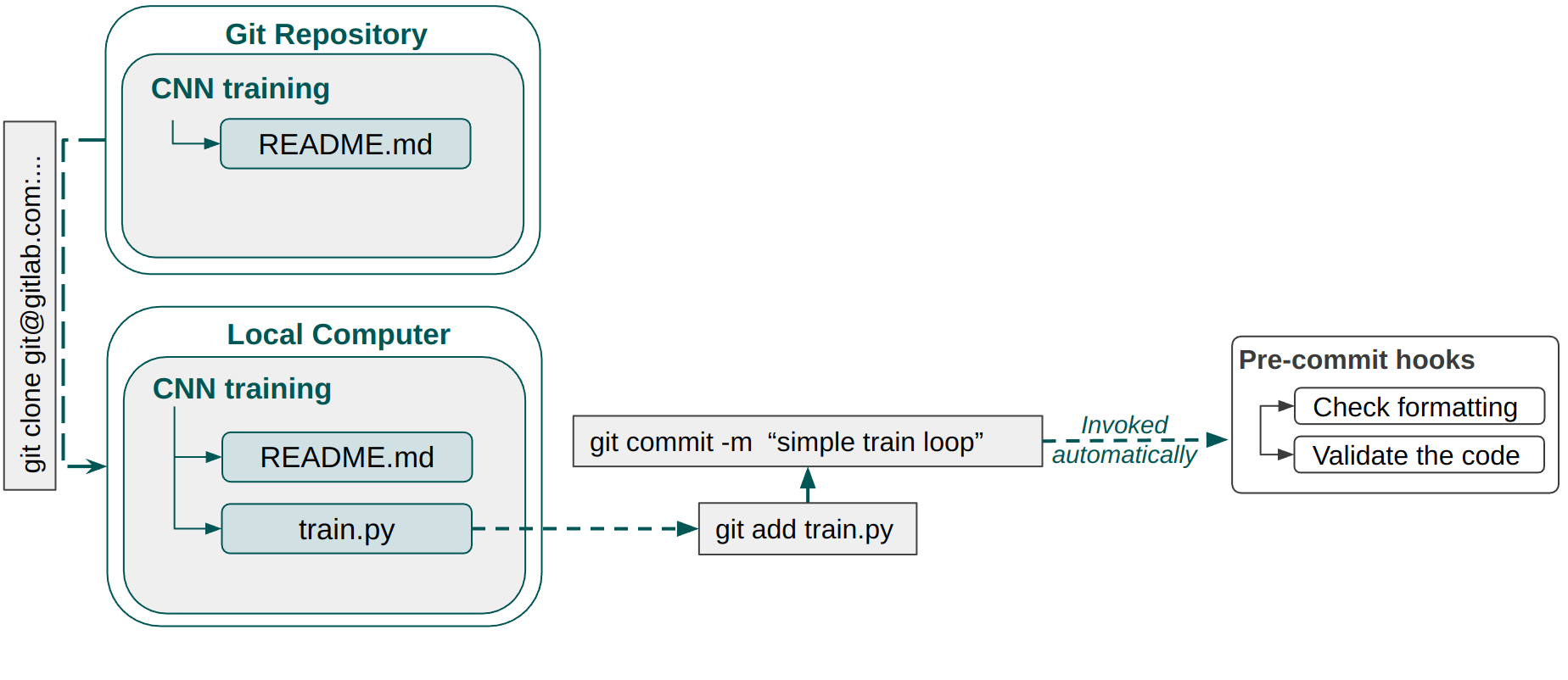

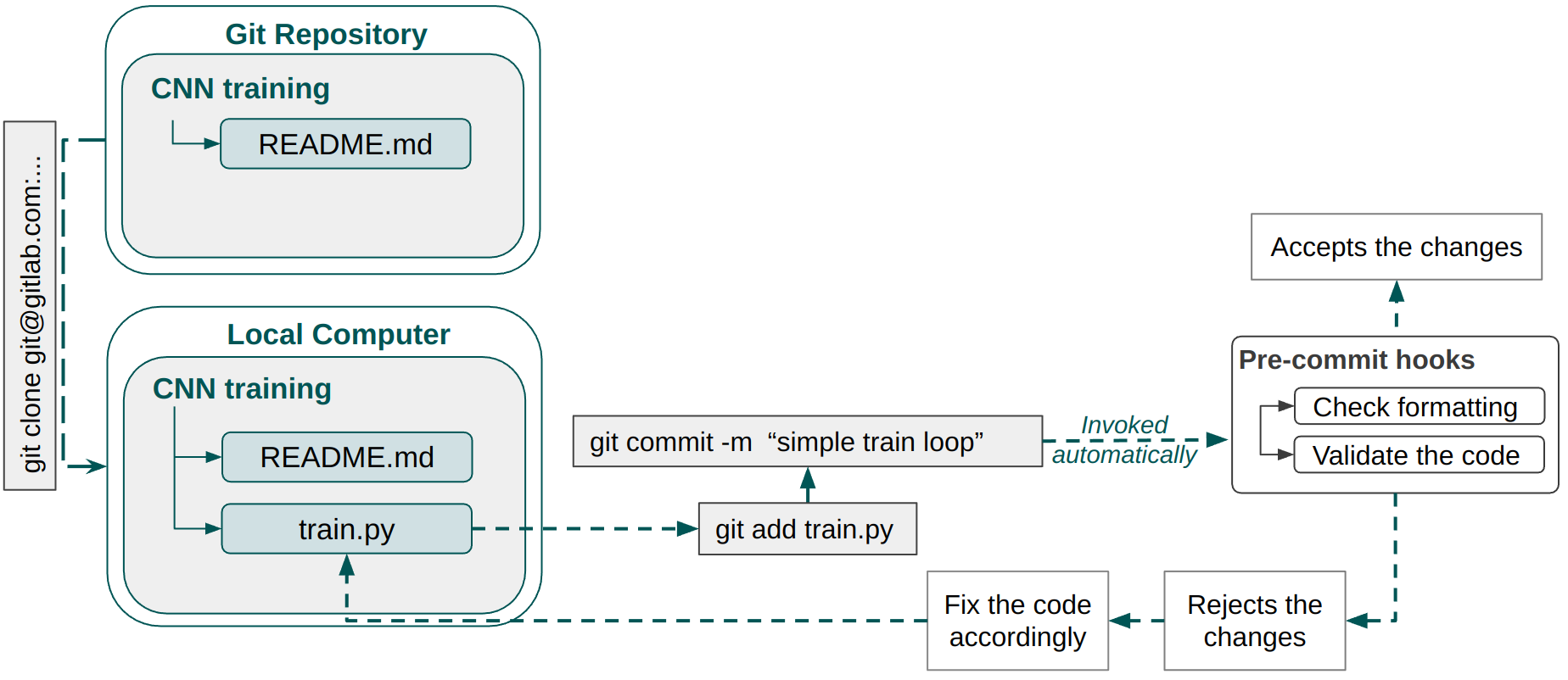

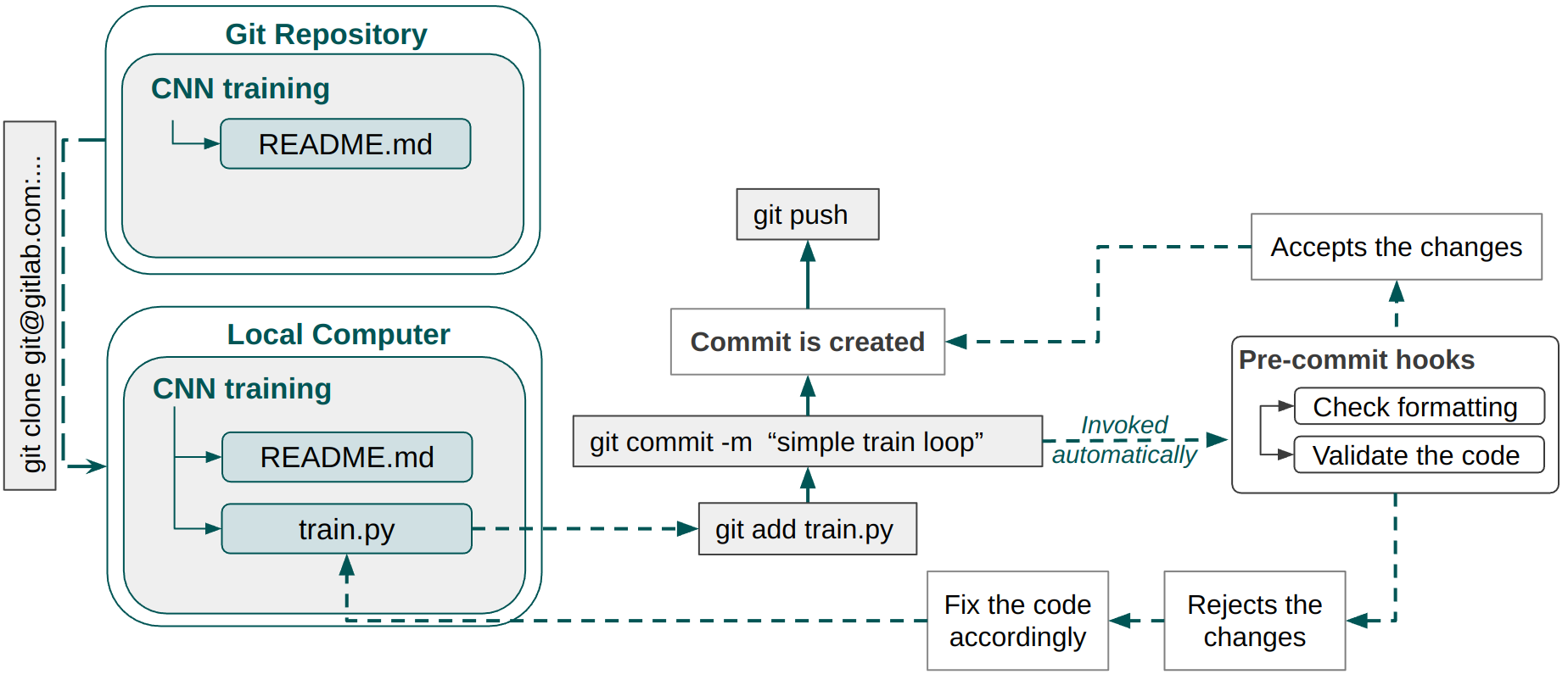

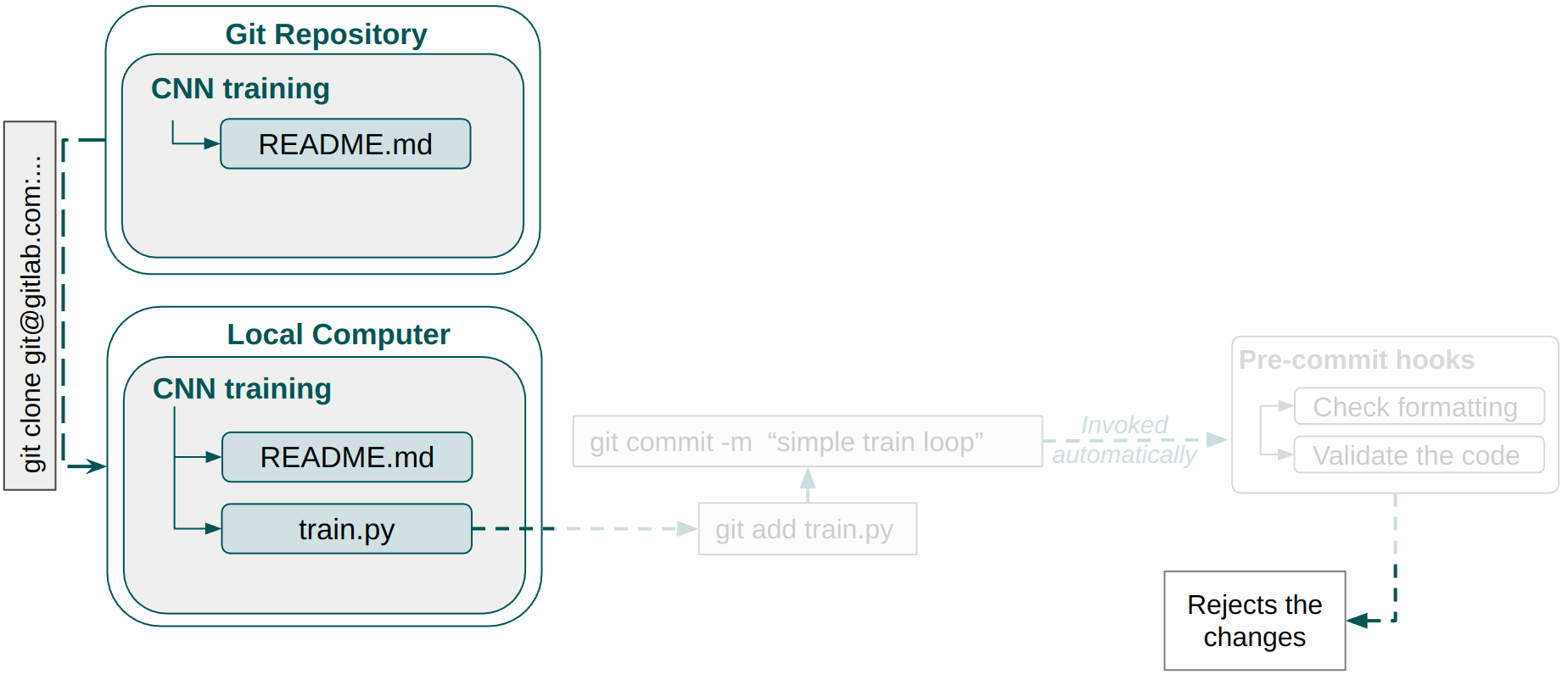

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

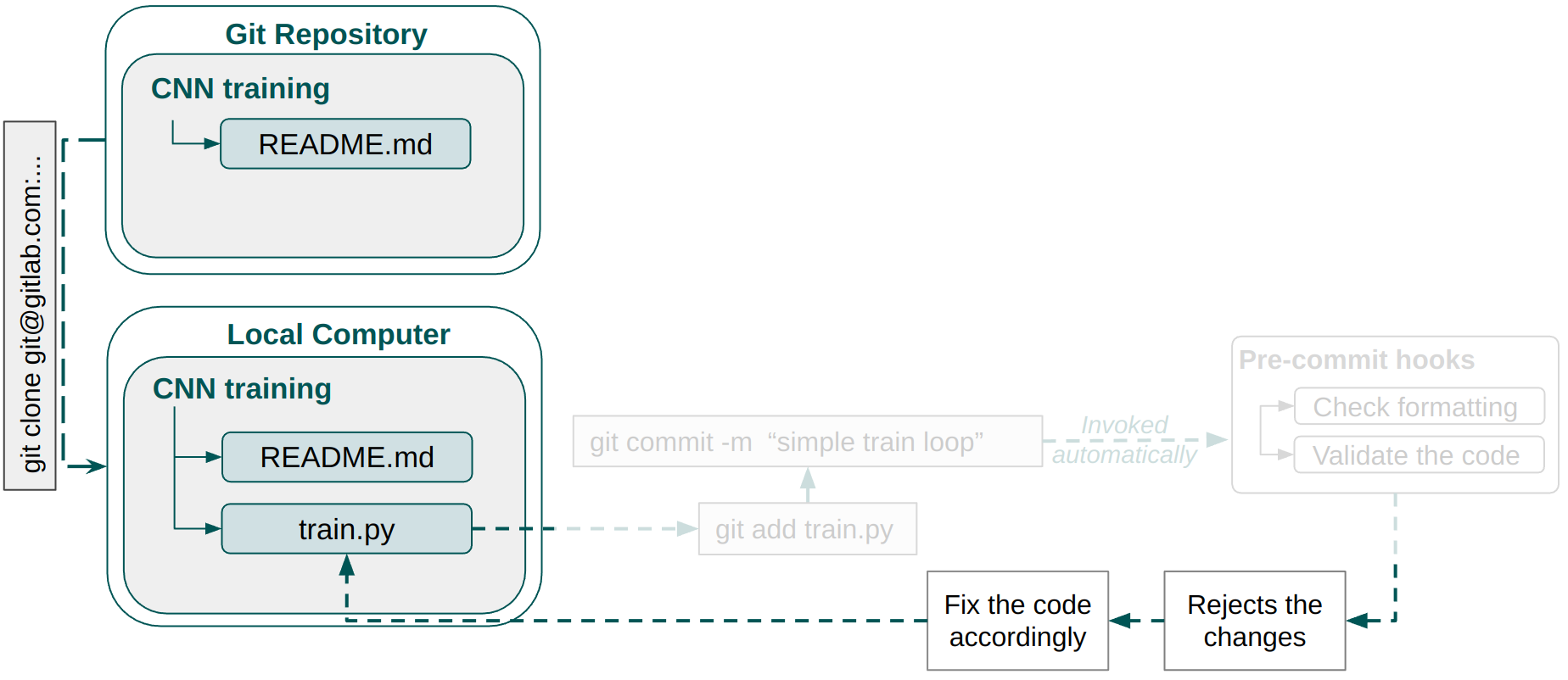

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

• When you run git commit, Git invokes the .git/hooks/pre-commit executable on the files you staged

• If any of the checks fail, then the commit is aborted.

•

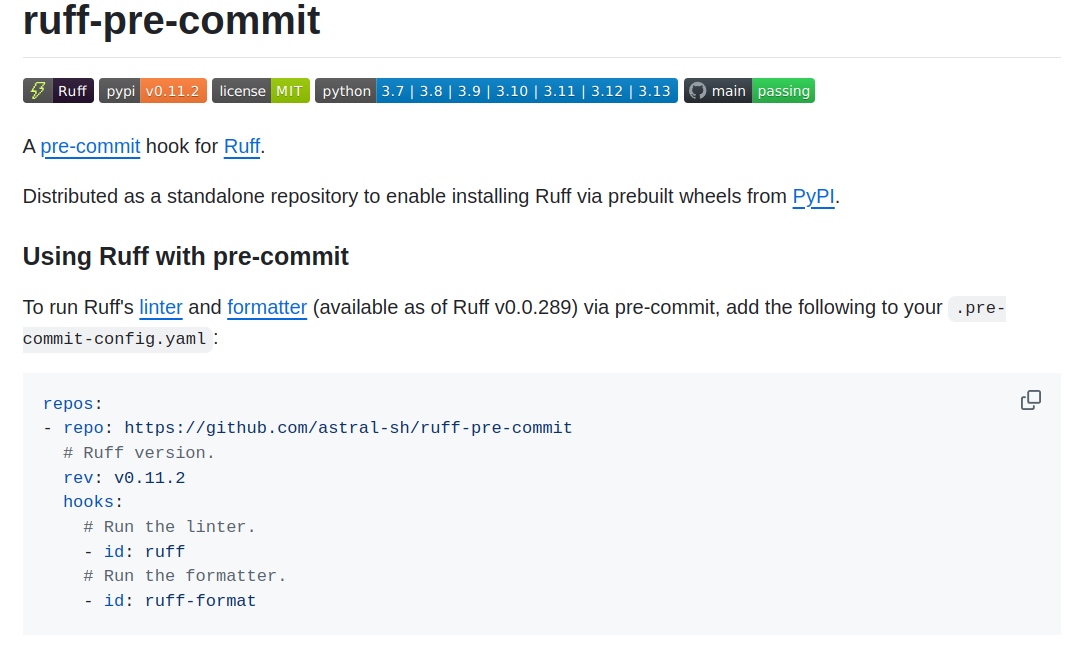

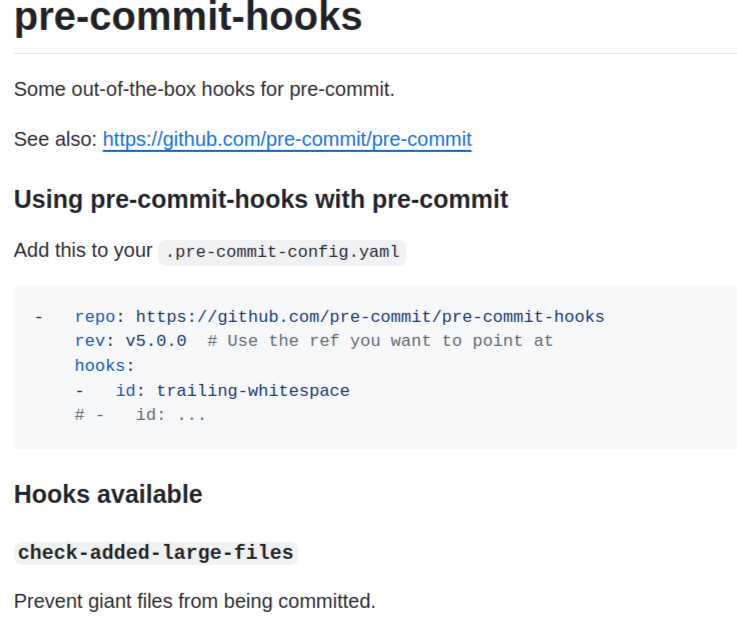

• Python package pre-commit:
  • An interface that simplifies the creation and use of pre-commit hooks.
  • Works with any project, not just Python-based projects.
  • No need to write custom hooks — simply select pre-existing ones!

Let's create simple pre-commit hooks

1. Install python's pre-commit package:

   pip install pre-commit


2. Create a .pre-commit-config.yaml in your project directory:

   repos:
   - repo: https://github.com/pre-commit/pre-commit-hooks
       rev: v4.6.0
       hooks:
           - id: check-yaml
           - id: end-of-file-fixer
           - id: trailing-whitespace
   - repo: https://github.com/astral-sh/ruff-pre-commit
       rev: v0.5.0 # Ruff version.
       hooks:
           - id: ruff # Run the linter.
           args: [ --fix ]
           - id: ruff-format # Run the formatter.


3. Set up the git hook scripts:

   pre-commit install


4. (Optional) Check out how it works by running it againts all files:

   pre-commit run --all-files


Defining .pre-commit-config.yaml file

• Make use of existing repos, e.g.:

  • pre-commit-hooks for common checks
  • Code formatting such as ruff or black

• Other useful repositories with out-of-the-box hooks: here

  repos:
  - repo: https://github.com/pre-commit/pre-commit-hooks
      rev: v4.6.0
      hooks:
          - id: check-yaml
          - id: end-of-file-fixer
          - id: trailing-whitespace
  - repo: https://github.com/astral-sh/ruff-pre-commit
      rev: v0.5.0 # Ruff version.
      hooks:
          - id: ruff # Run the linter.
          args: [ --fix ]
          - id: ruff-format # Run the formatter.


Bypassing pre-commit hooks

• If necessary, you can bypass pre-commit hooks during a commit:

  git commit --no-verify -m "<your commit message>"


  Use --no-verify only when absolutely necessary, such as during emergency fixes or when hooks are malfunctioning. Regular use may lead to inconsistent code quality.

• Catch issues early: Automatically detect and prevent common errors before they enter your codebase.
• Enforce consistency: Maintain uniform code formatting and style across the team.
• Customizable & extendable: Leverage community-maintained hooks or create custom ones tailored to your project's needs.

• Pre-commit hooks are only active if installed!

  Pre-commit hooks are not enforced by default. Each contributor must run pre-commit install to activate them in their local Git environment.

CI/CD pipelines in Gitlab

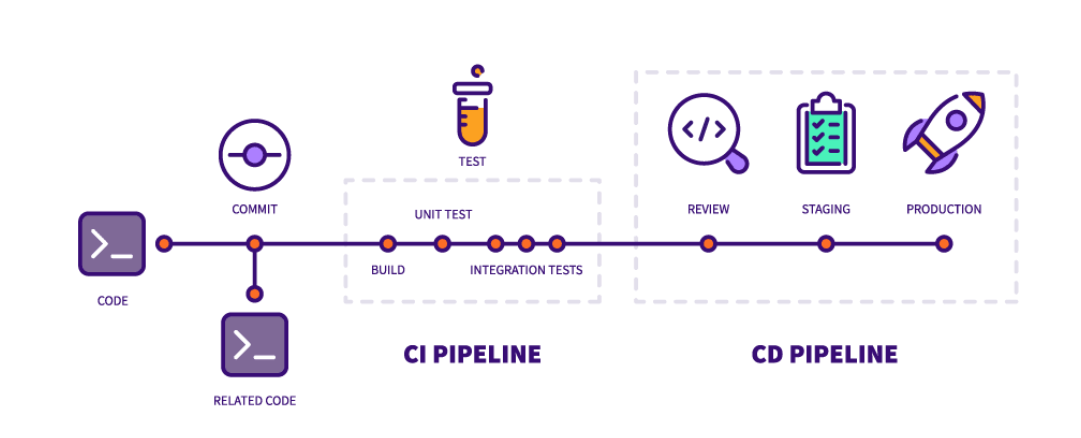

What is CI/CD?

• A continuous software development method where code changes are automatically built, tested, deployed, and monitored
• These automatizations are organized in CI/CD Pipelines
• The pipeline is defined by you and can be configured to be triggered by various actions, e.g.
  • After each commit is pushed
  • For merge requests
  • For certain branches
• One could e.g. prevent merging into the main branch if the CI/CD pipeline fails, as described here

• CI = Continious Integration:
  • the practice of automatically building and testing each specified change.
  • Examples in Python projects:
    • "Building":
      • Create a virtual environment & install all dependeincies
      • Build a Python package you're developing
      • Install other external tools if applicabale
    • Testing:
      • Run a defined testsuite e.g. via pytest (unit tests, integration tests, etc,)

• Automated testing:
  • Helps detect errors early.
  • Prevents oversight, like skipping tests, thus improving code reliability.
  • Makes developers aware about which commits are working, who made them, and identify problem areas quickly.
• Automated builds:
  • Enhances reproducibility
  • Guarantees stable builds after every change, thus eliminating "it worked on my machine" problem
  • Helps you to catch missing dependencies (e.g., if you forgot to include a required library).
  • Allows testing the code in multiple environments.
• => Improved collaboration, code reliability and reproducibility

• CD = Continious Deployement / Delivery
  • Extension of Continious Integration
  • Once code has been tested and built as part of the CI process, it automatically deploys all code changes to a testing and/or production environment
  • Examples in Python projects:
    • Publish a package in pip
    • Create and publish documentation for the package you're developing
    • Deploy software (e.g. web app / API endpoint)

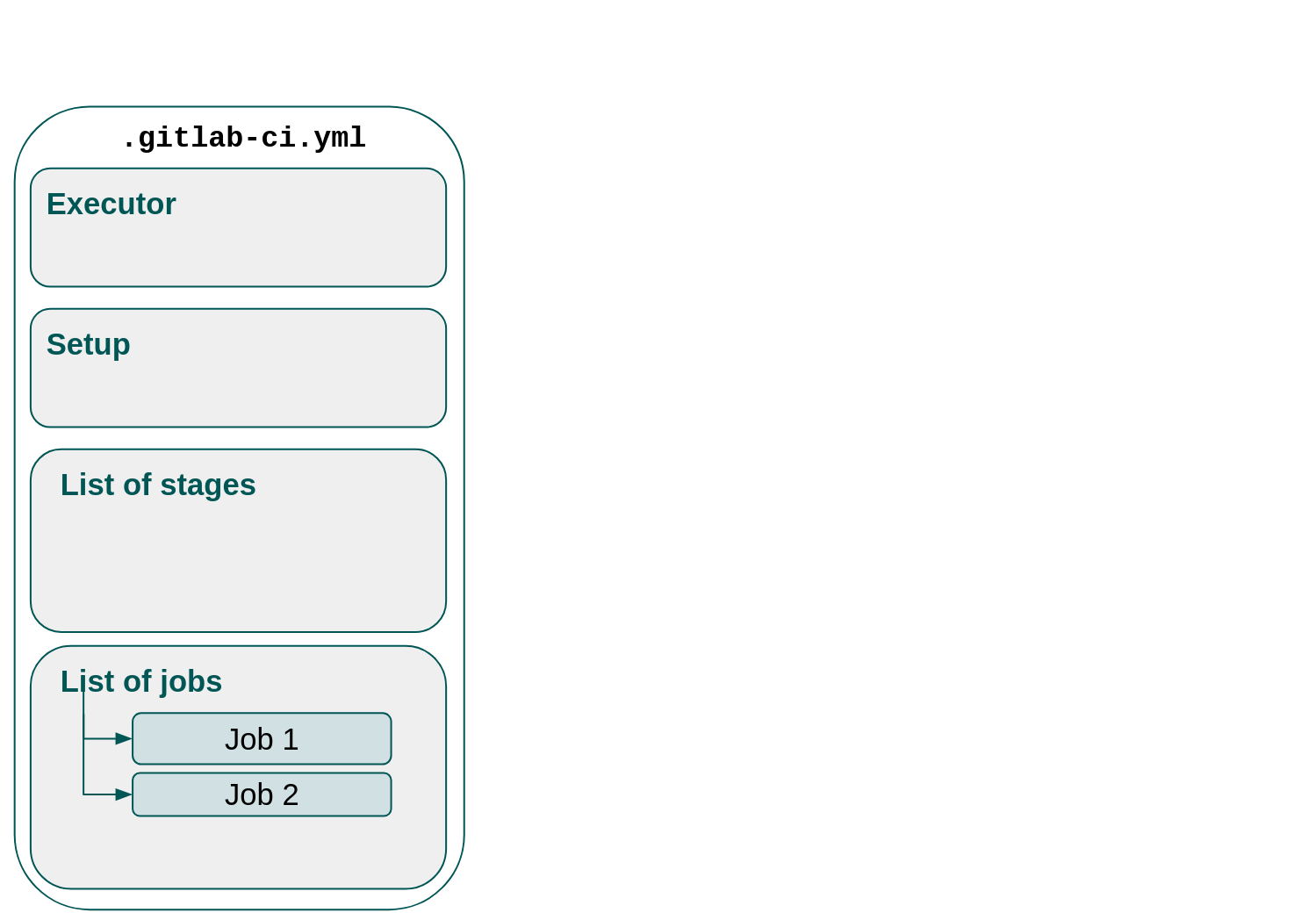

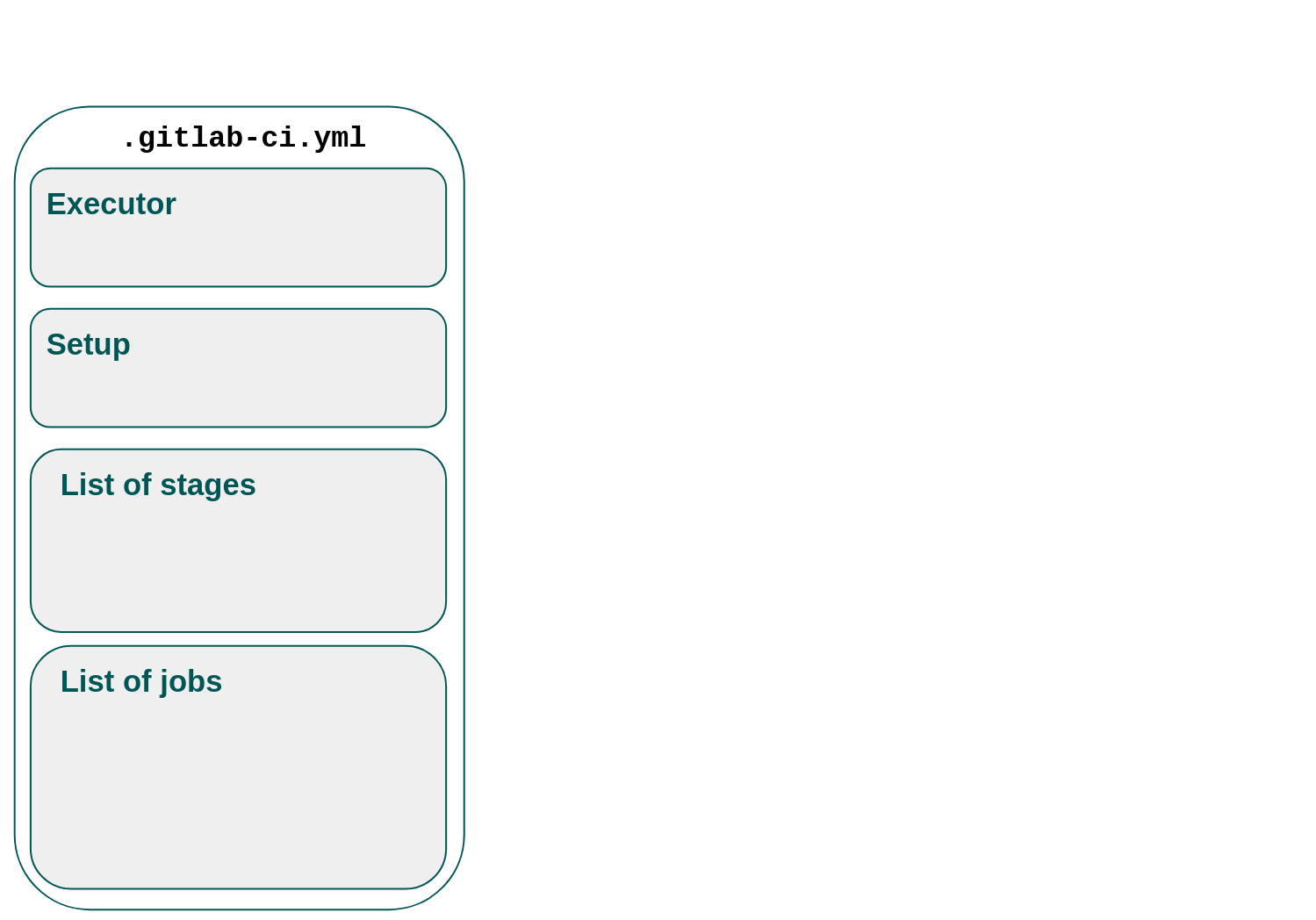

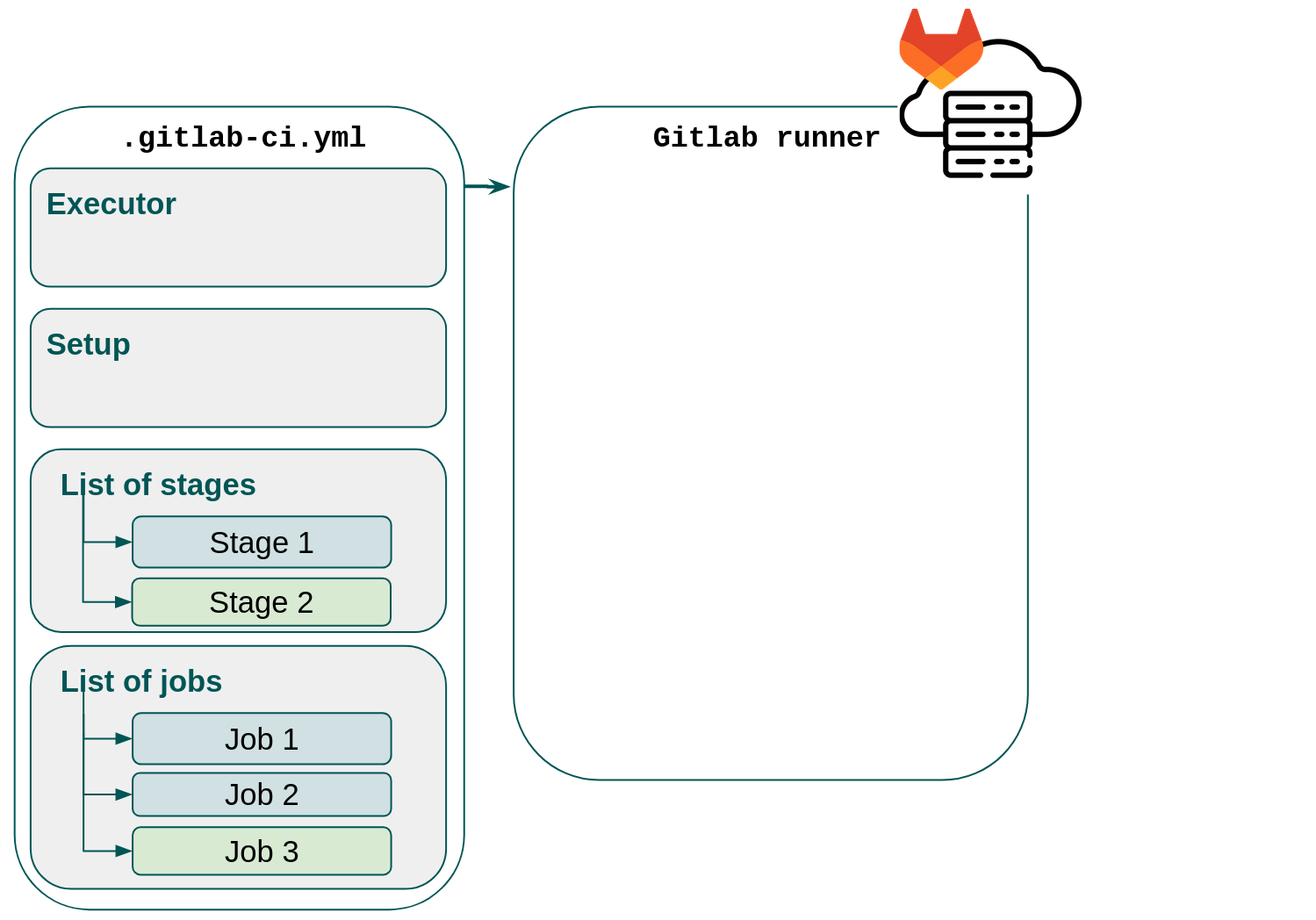

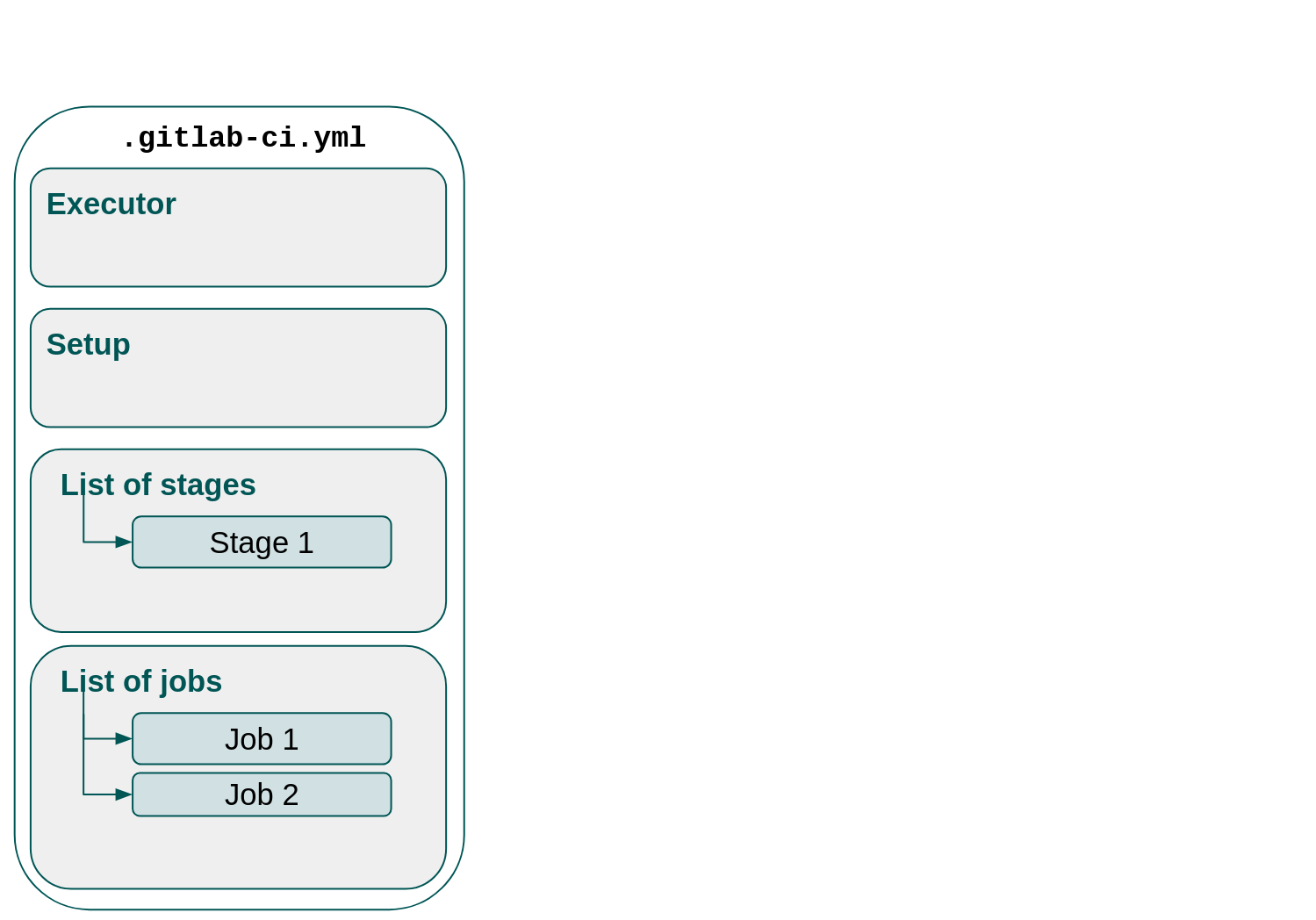

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.

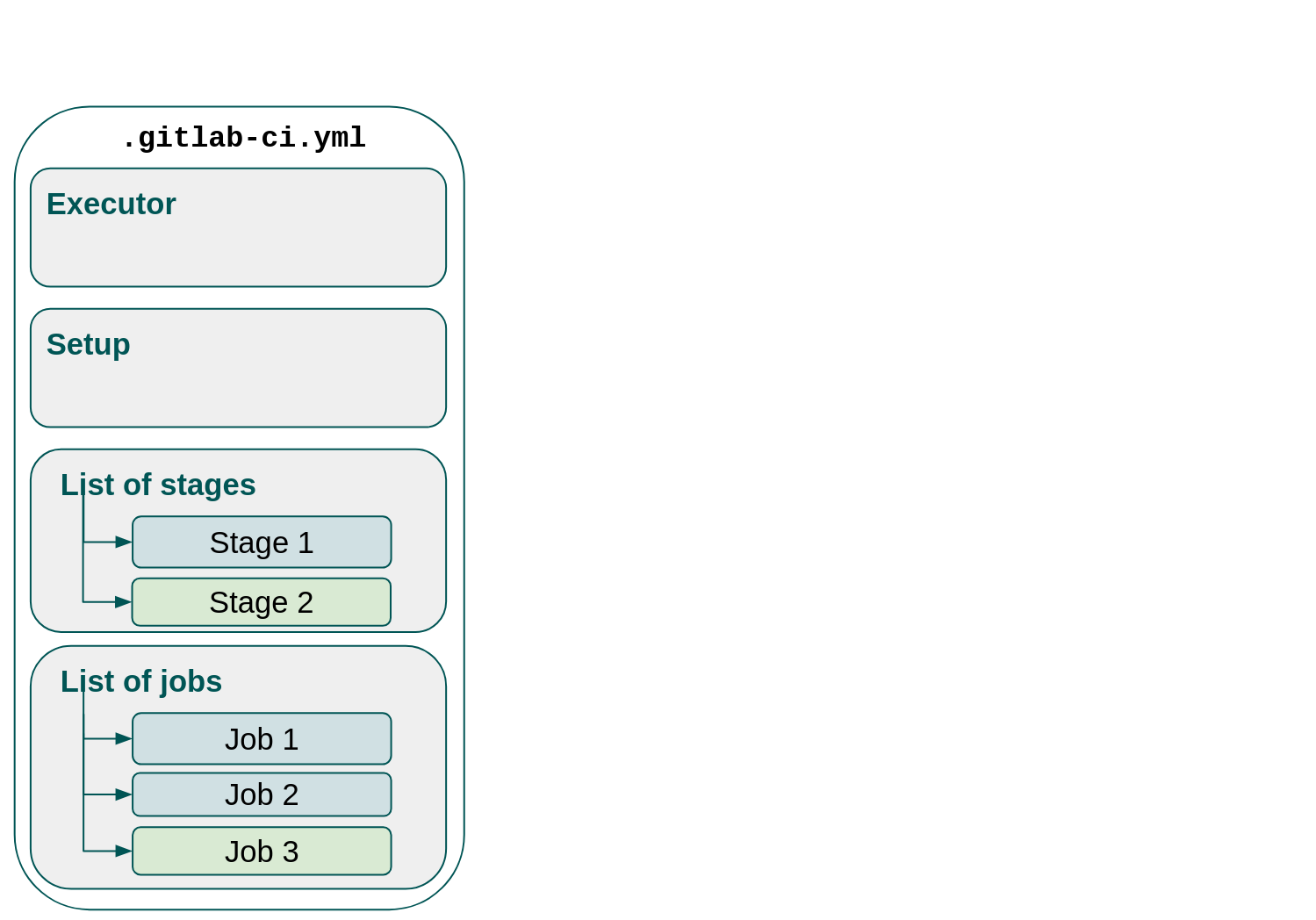

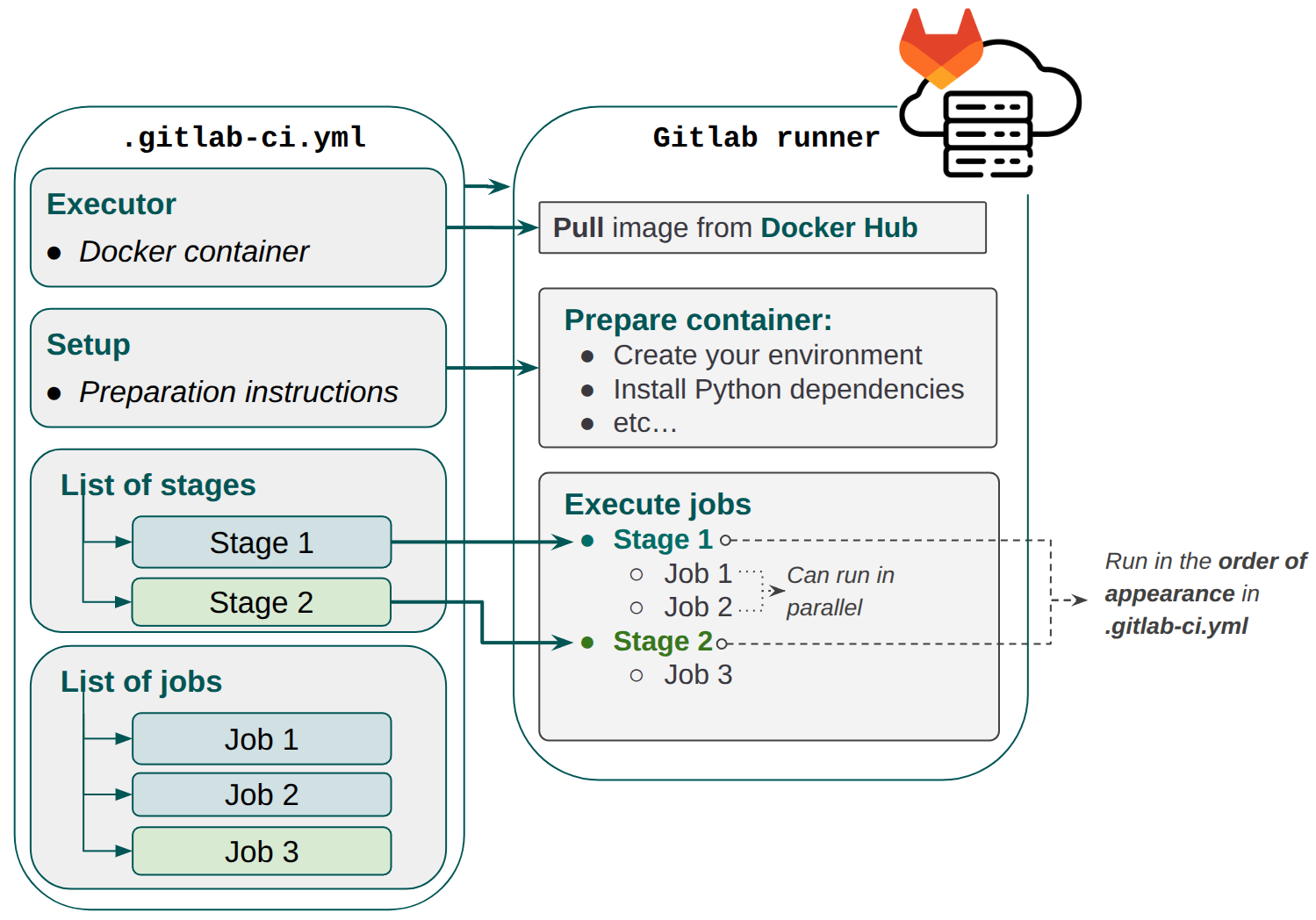

• Jobs are organized into stages, which define the sequence in which the jobs run.

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.

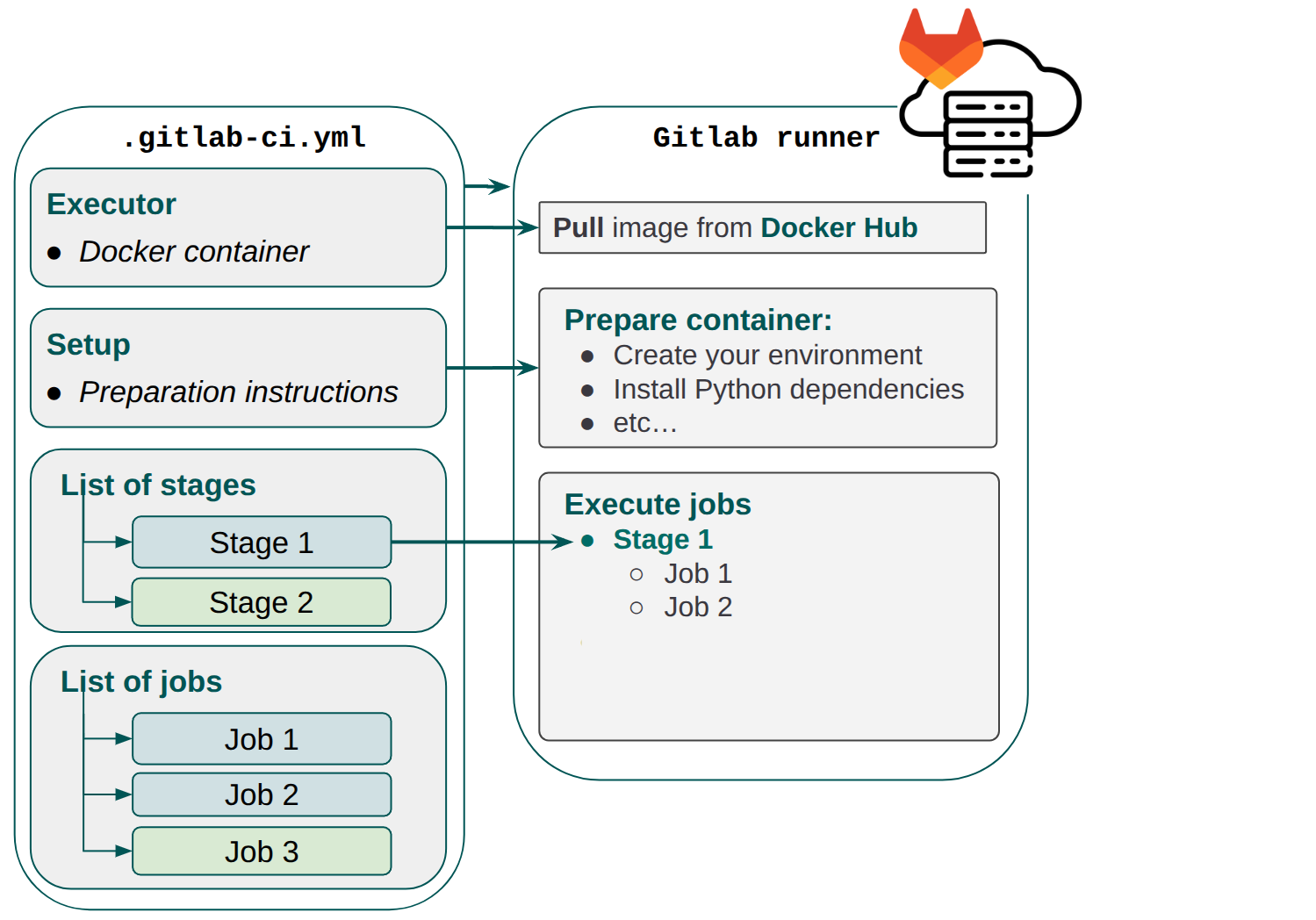

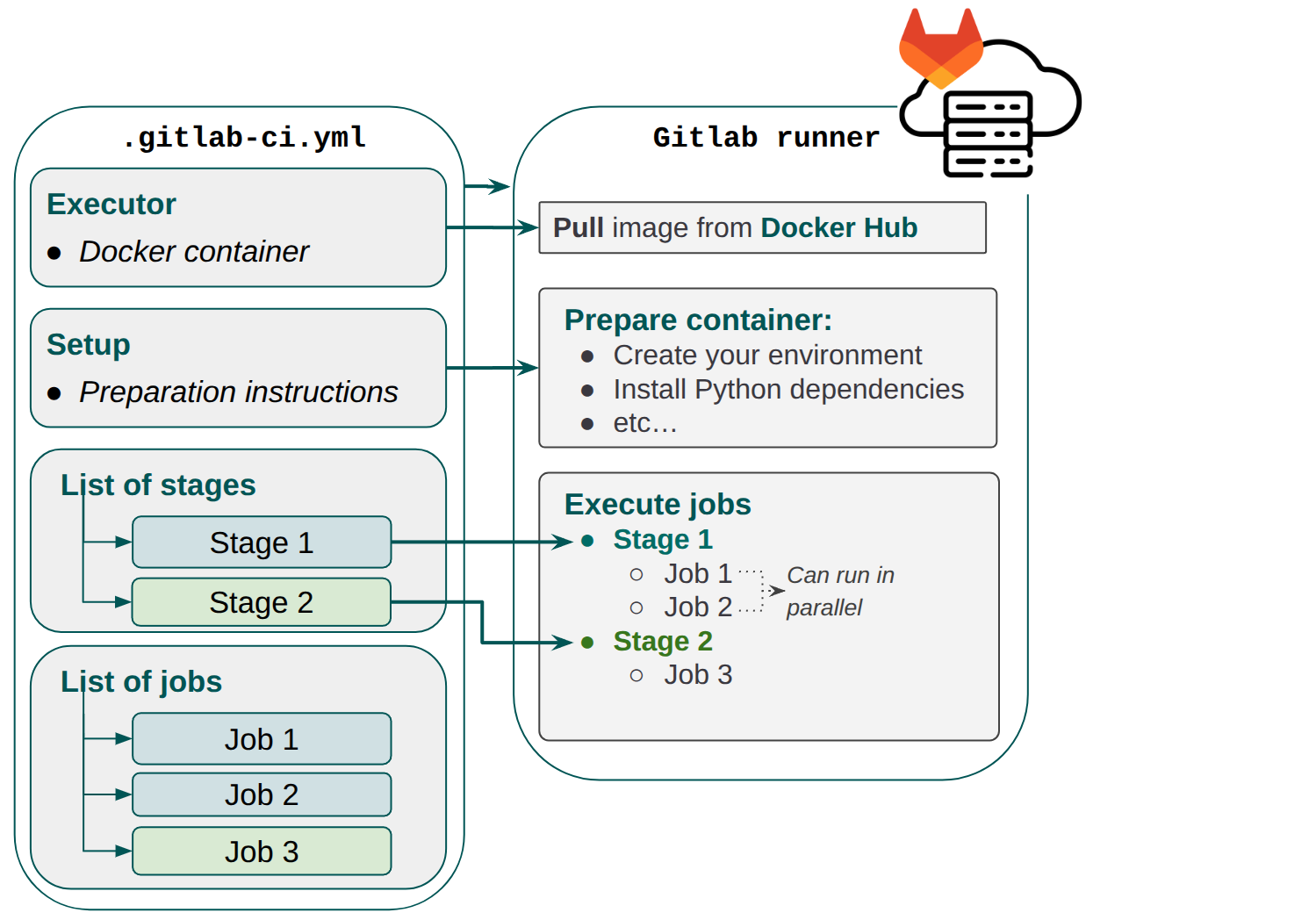

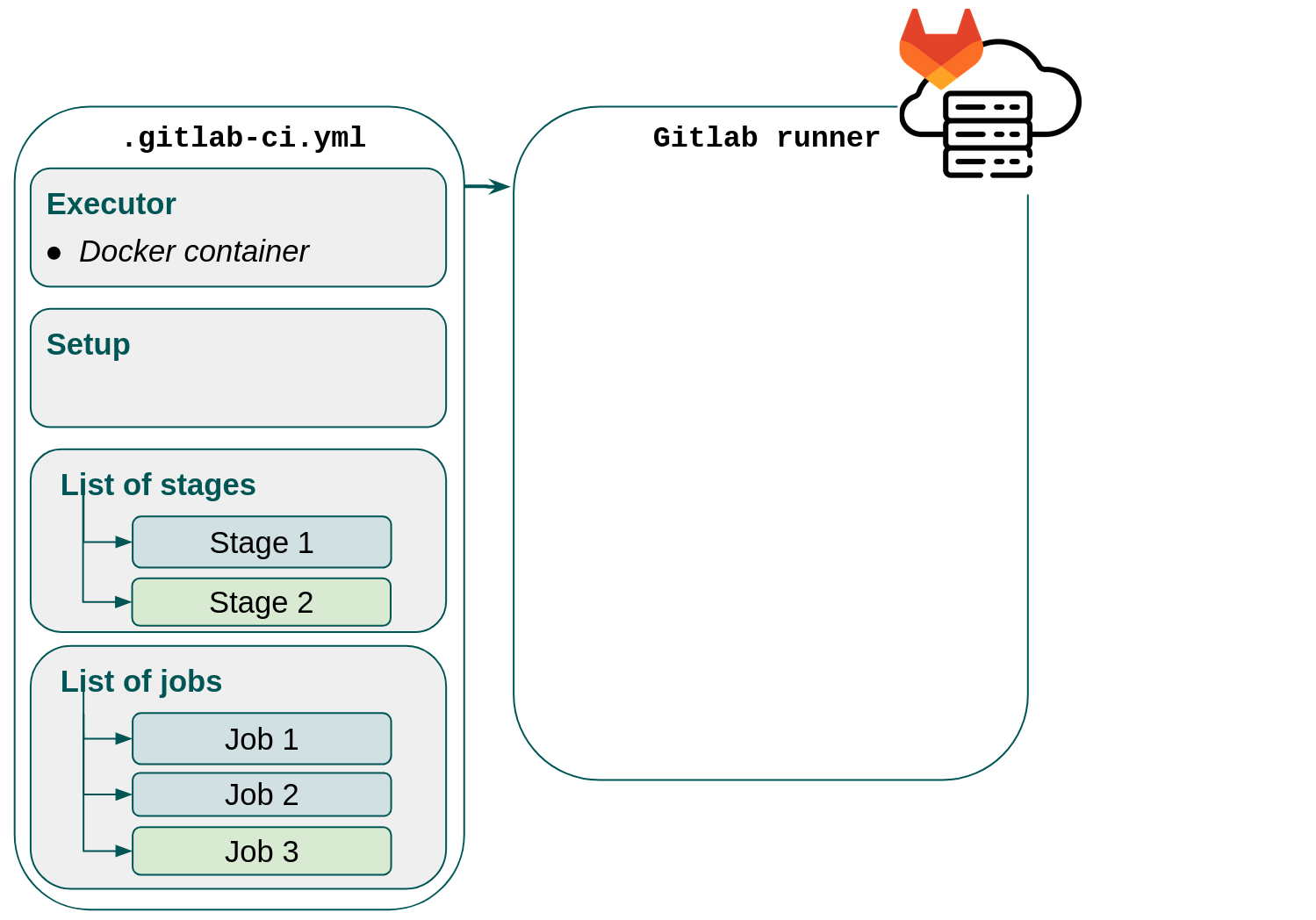

• Jobs are executed on the Gitlab runners:

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• CI/CD pipeline consists of jobs, which are lists of tasks to be executed.
• Jobs are organized into stages, which define the sequence in which the jobs run.
• Jobs are executed on the Gitlab runners:
  • daemons running on another server

• Types of Gitlab runners:
  • Gitlab-hosted runners:
    • available in gitlab.com with some monthly quotas
  • Custom-hosted runners:
    • managed by organizations for their own GitLab instances, e.g. MPCDF GitLab service:
      • MPCDF provides its own runnes for MPCDF GitLab service
      • only available if you have your repository in gitlab.mpcdf.mpg.de
  • Self-managed runners:
    • installed, configured, and managed in your own infrastructure.

• In your repository, create a .gitlab-ci.yml:
  (minimalistic example)

  default:
      image: python:3.12
  before_script:
      - pip install -r requirements.txt
  run_tests:
      script:
          - echo "This is the test stage"
          - pytest tests/test_unit.py


• .gitlab-ci.yml - a more convoluted example:

  default:
      image: python:3.12
  before_script:
      - pip install -r requirements.txt
      - pip install .
  variables:
      USERNAME: "mockusername"
      PROJECT_NAME: "my-demo"
  stages:
      - test
  run_unit_tests:
      stage: test
      script:
          - echo "This is the test stage"
          - pytest -v --junitxml=tests/report_unit.xml tests/test_unit.py
      artifacts:
          when: always
          reports:
              junit: /builds/$USERNAME/$PROJECT_NAME/tests/report_unit.xml
  run_integraton_tests:
      stage: test
      script:
          - echo "This is the test stage"
          - pytest -v tests/test_integration.py
      rules:
          - if: $CI_PIPELINE_SOURCE == "merge_request_event"
          - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH


Let's break it down step by step!

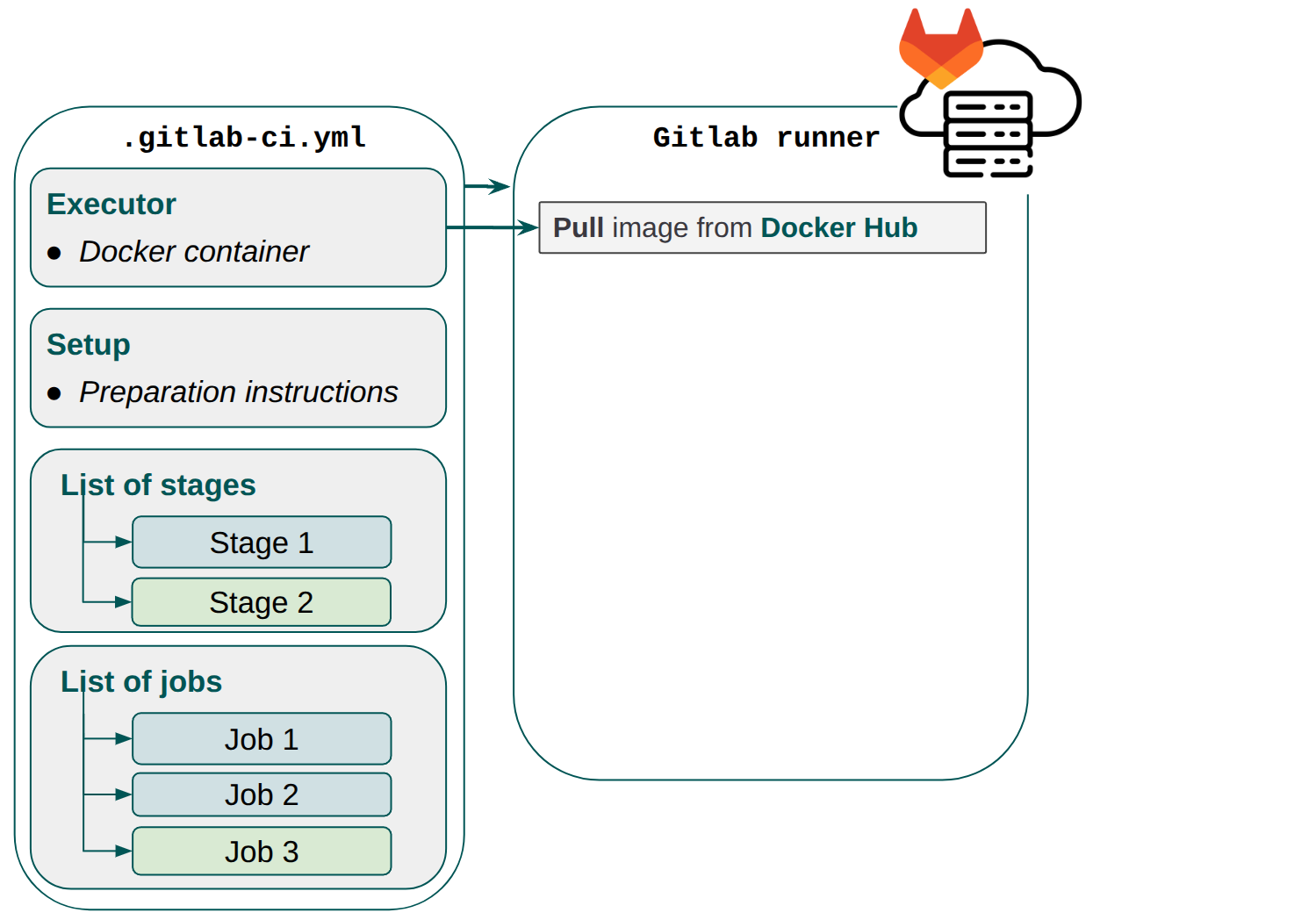

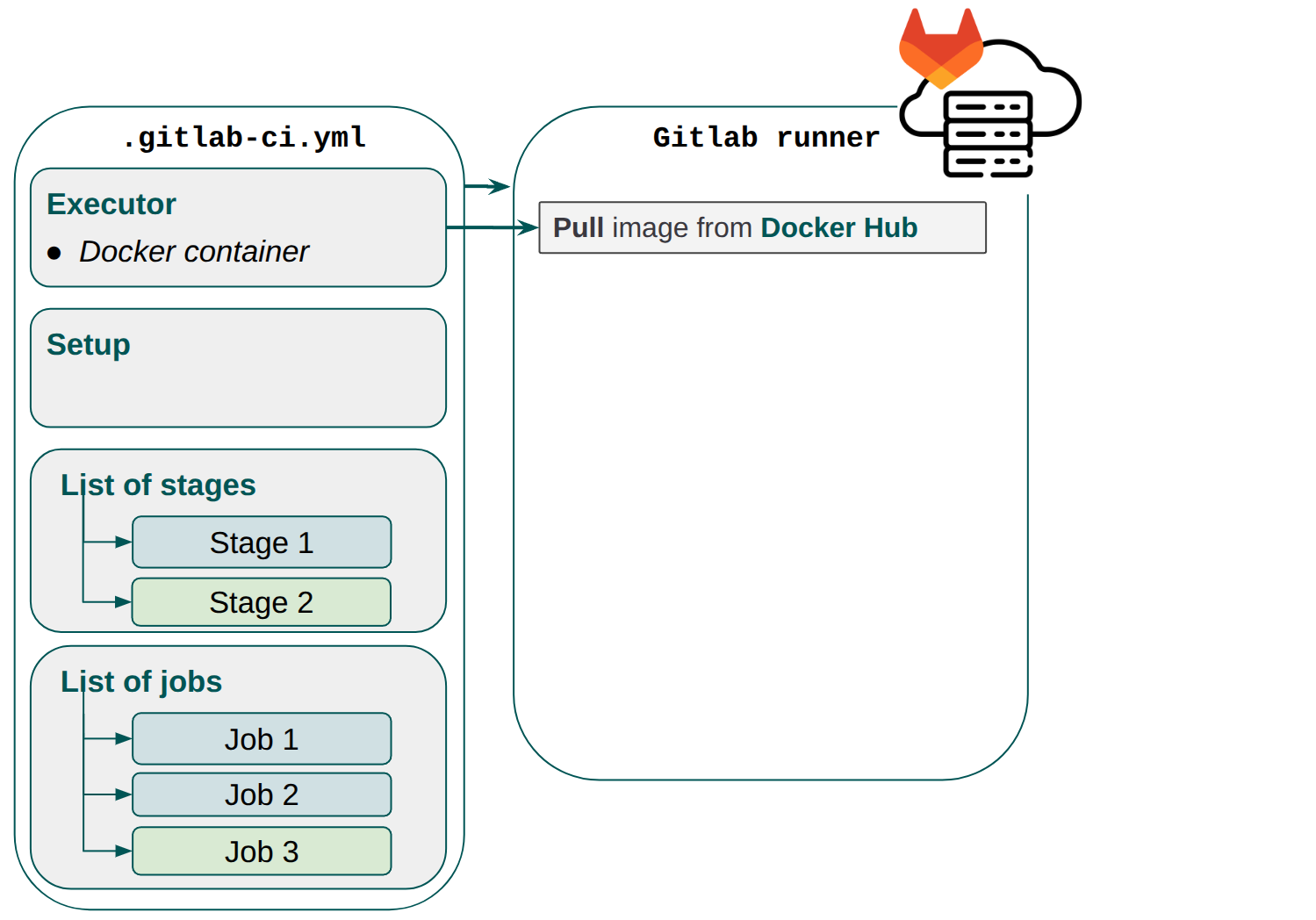

• Defining executor: first, we define a Docker image which should be used as basis for a container to execute the CI Pipeline:

  default:
      image: python:3.12

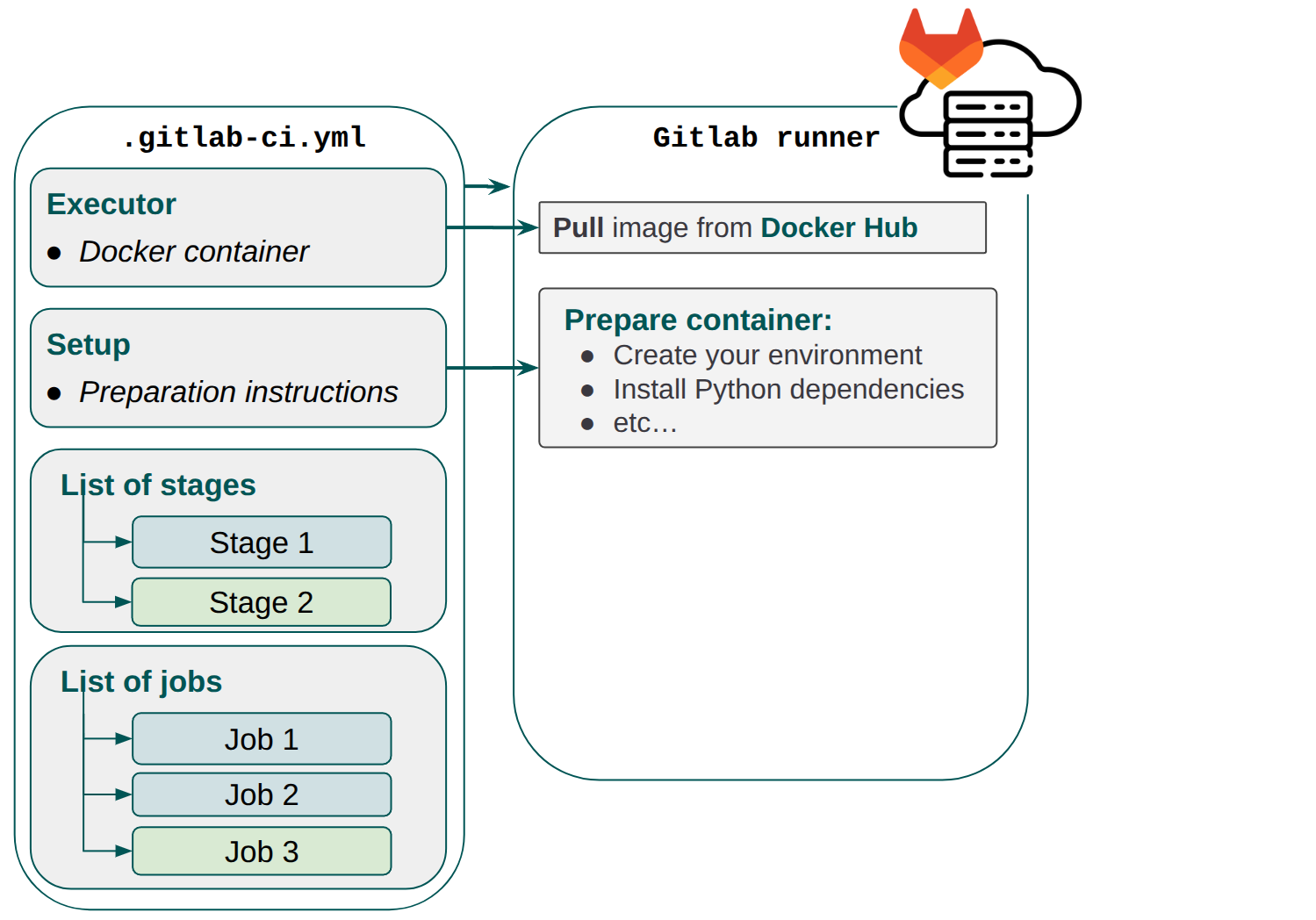

• Defining setup: then, we prepare our Python environment inside the Docker container:

  before_script:
      - pip install -r requirements.txt
      - pip install .


  • This particular setup we want to do before any of the later defined stages are executed, so we put it into a global section before_script

• (Optional) Define the stages (e.g. in our case, it will only be the test stage)

  stages:
      - test


• (Optional) Define the variables:

  variables:
      USERNAME: "mockusername"
      PROJECT_NAME: "my-demo"


  • Variables can be defined at various levels:
    • At the top-level: available to all jobs unless a job overrides it.
    • Within a specific job: only accessible within that job’s script, before_script, or after_script.

• Define the jobs:

  • Define a job called run_unit_tests:

    run_unit_tests:
        stage: test
        script:
            - echo "This is the test stage"
            - pytest -v --junitxml=tests/report_unit.xml tests/test_unit.py
        artifacts:
            when: always
            reports:
                junit: /builds/$USERNAME/$PROJECT_NAME/tests/report_unit.xml


    • Job run_unit_tests belongs to the stage test and executes a script.
    • A script is just a collection of shell commands

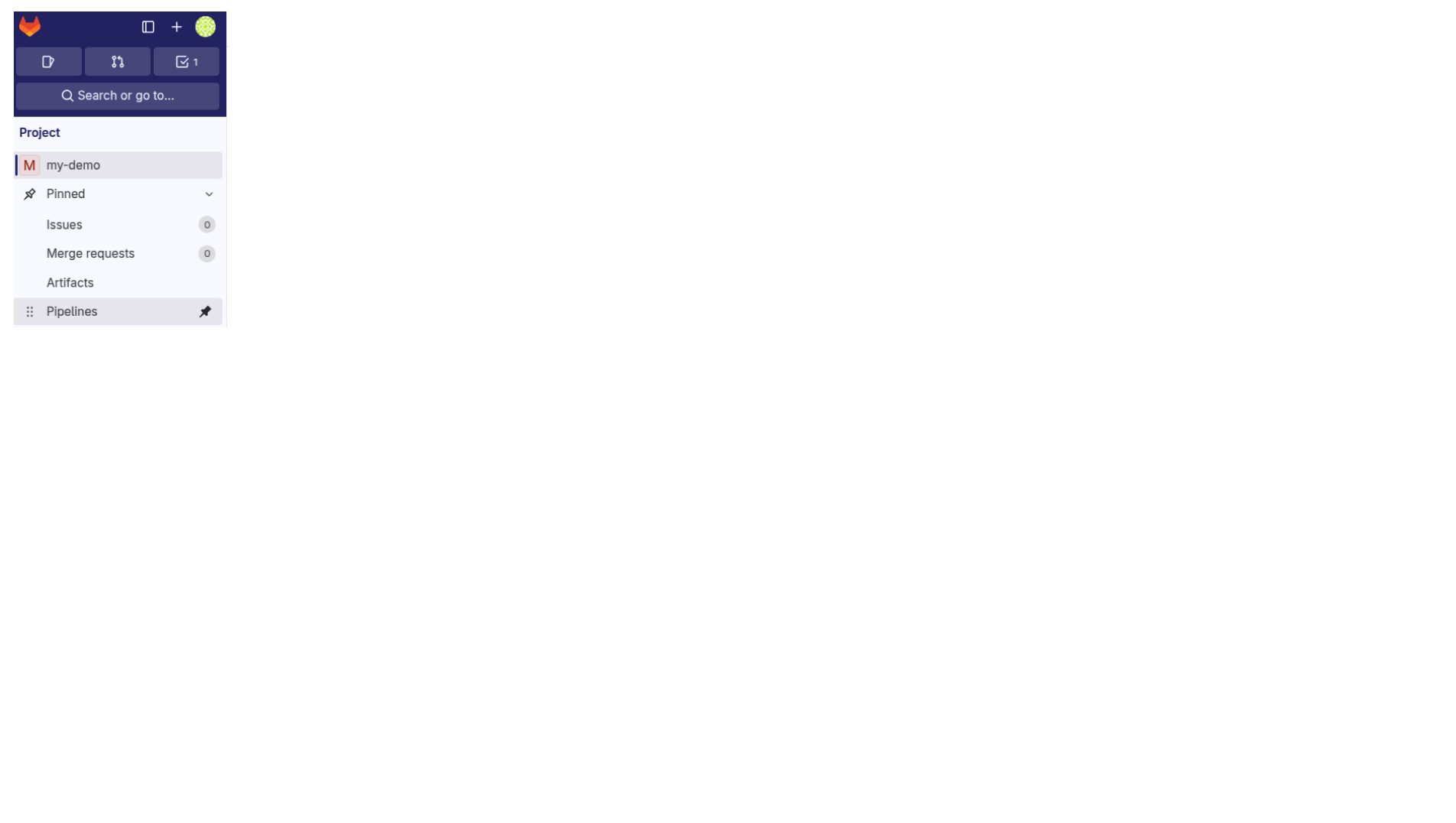

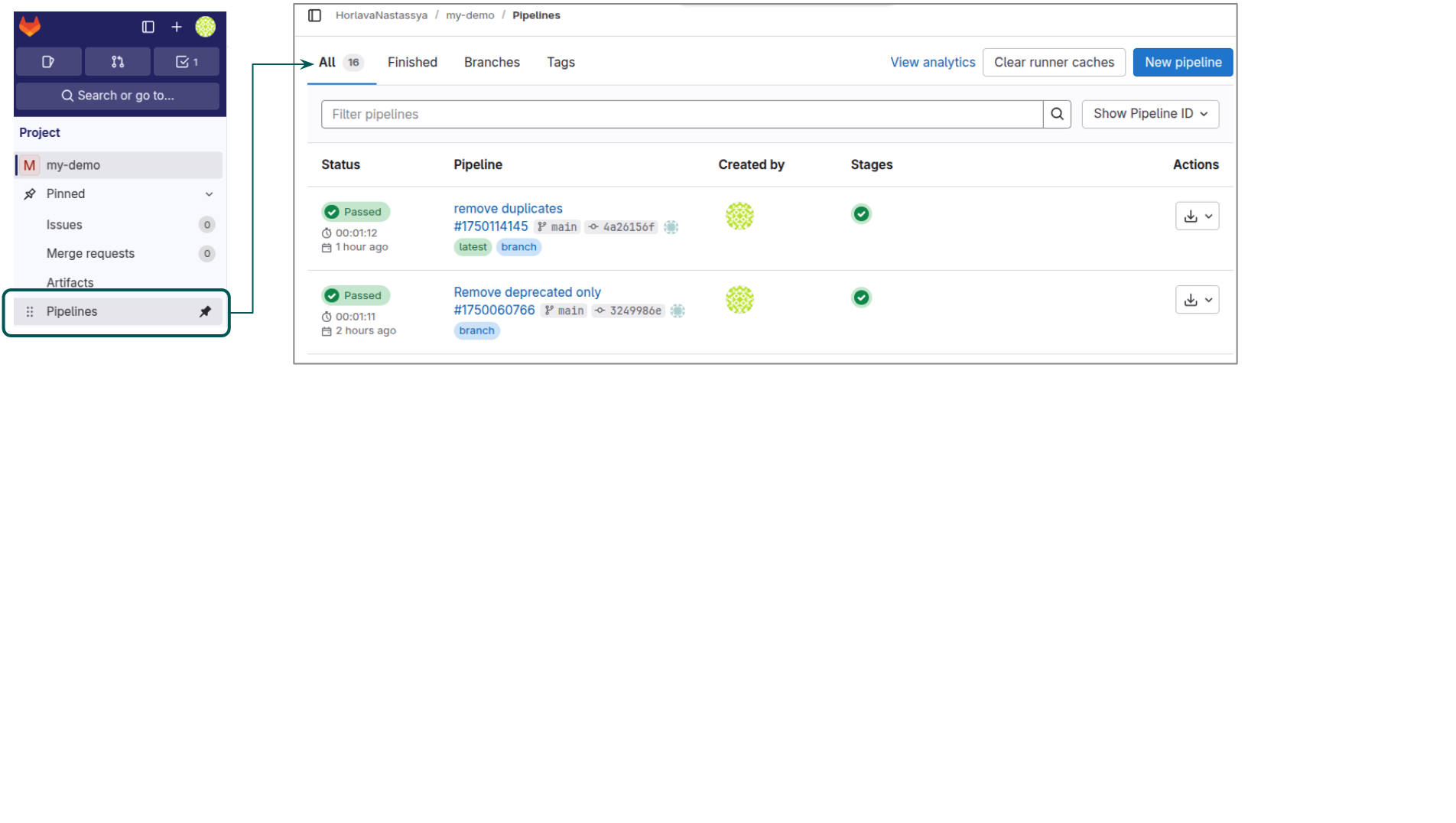

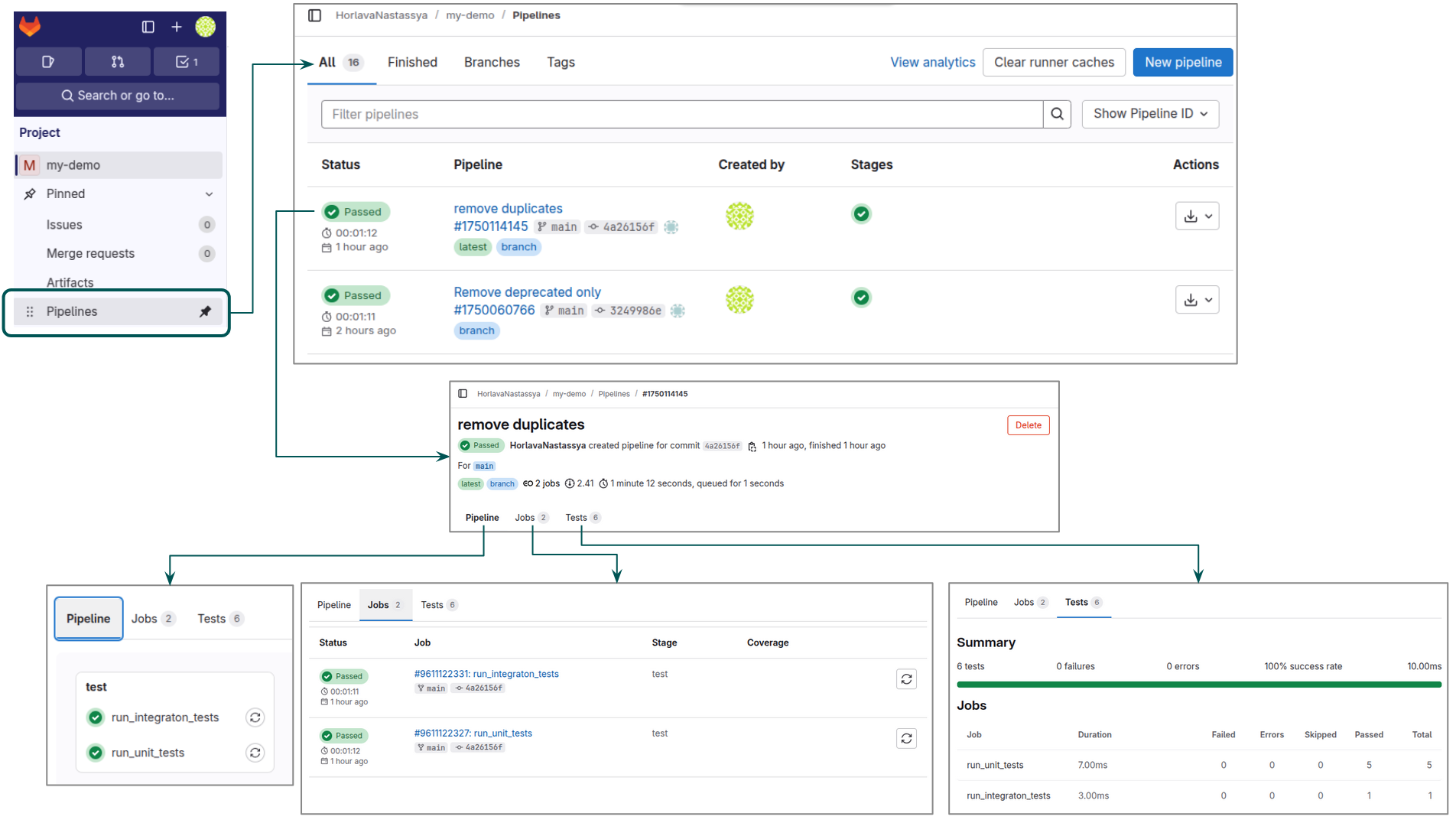

    • Parameter –junitxml defines an XML file for the output of the tests. In the artifacts section, this file is used by GitLab to produce a nice graphical report which can be found in the pipeline overview under Tests

• Define a job called run_integraton_tests:

  run_integraton_tests:
      stage: test
      script:
          - echo "This is the test stage"
          - pytest -v tests/test_integration.py
      rules:
          - if: $CI_PIPELINE_SOURCE == "merge_request_event"
          - if: $CI_COMMIT_BRANCH == $CI_DEFAULT_BRANCH


• This job uses the rules field to define under which conditions it should be executed:

  • Here, it will trigger on a merge request or when a change is pushed to the default branch (main).
  • Learn more about defining rules here

• Git in general:
  • https://www.atlassian.com/git
  • https://git-scm.com/book/en/v2
• Branching: https://barbagroup.github.io/essential_skills_RRC/git/branching/
• Learn how branching works interactively:
  • E.g. https://git-school.github.io/visualizing-git/#free
  • Full list: https://livablesoftware.com/tools-to-visualize-the-history-of-a-git-repository/
• pre-commit hooks:
  • https://towardsdatascience.com/pre-commit-hooks-you-must-know-ff247f5feb7e/
• CI pipelines:
  • https://docs.mpcdf.mpg.de/doc/data/gitlab/devop-tutorial.html
  • https://realpython.com/python-continuous-integration/
